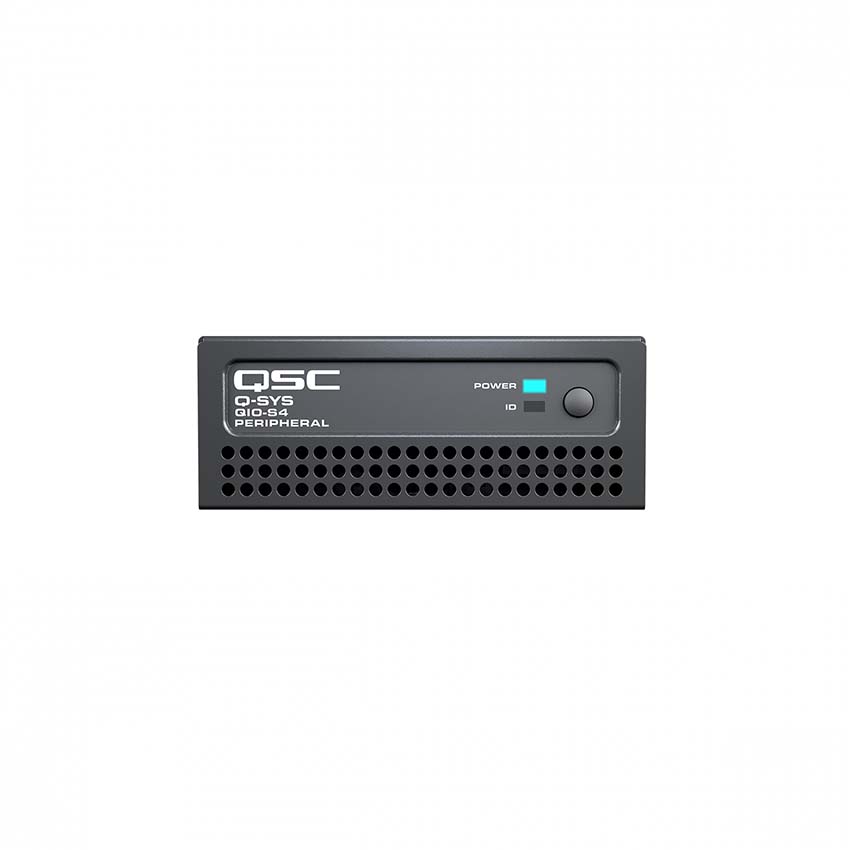

The Q-SYS QIO-S4 expands your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked control devices via Serial connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
- Native network Serial connectivity solution for Q-SYS

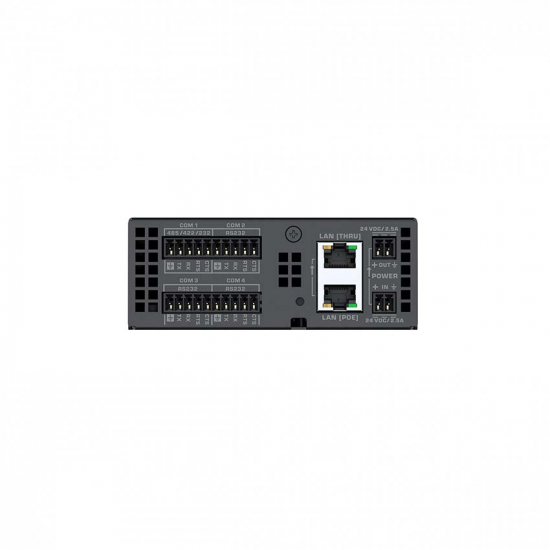

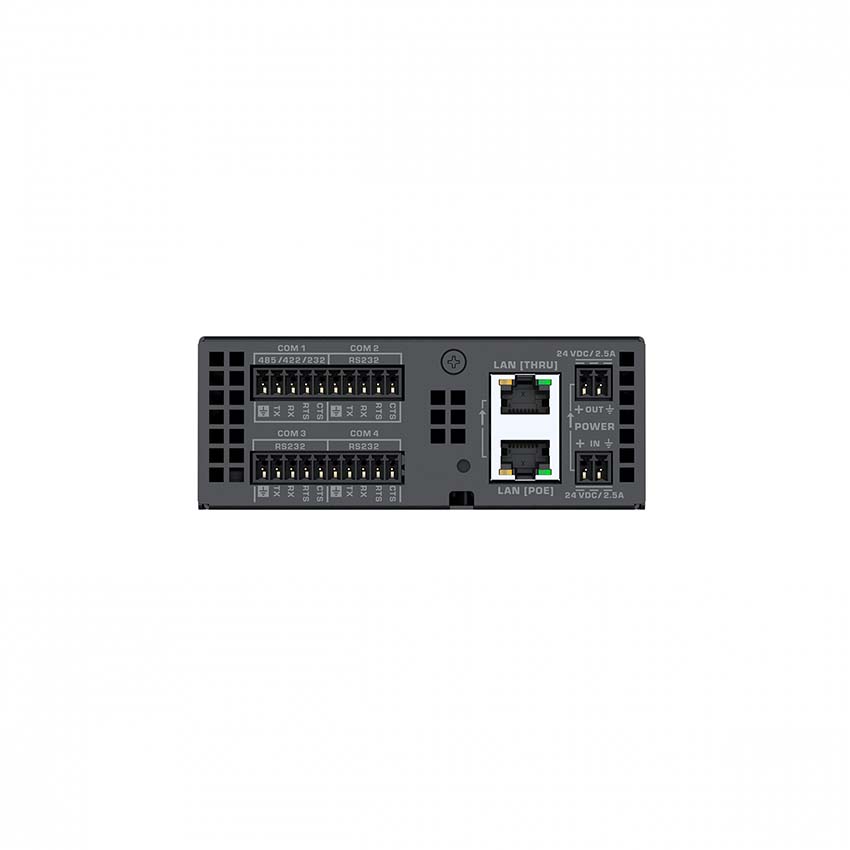

- Four (4) bi-directional RS232 serial ports
- One port includes RS422 and RS485 compatibility
- Power over Ethernet (PoE) capable
- Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
- Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager

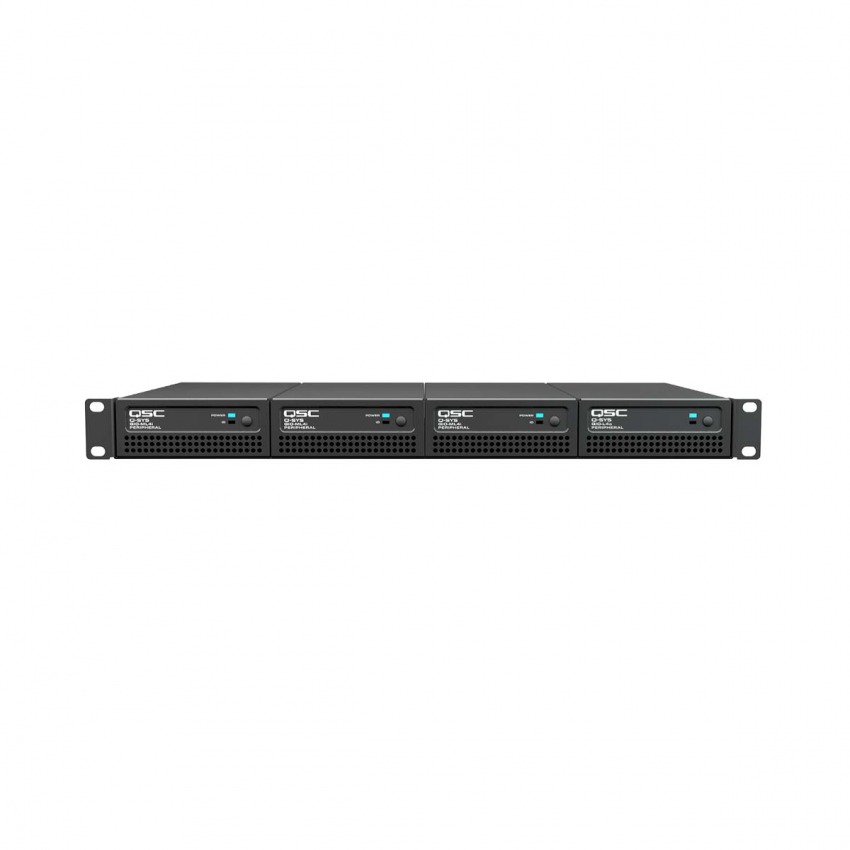

- Surface- or rack-mountable (1RU, quarter width)
- Includes surface mounting hardware
- Network Serial connectivity where you need it

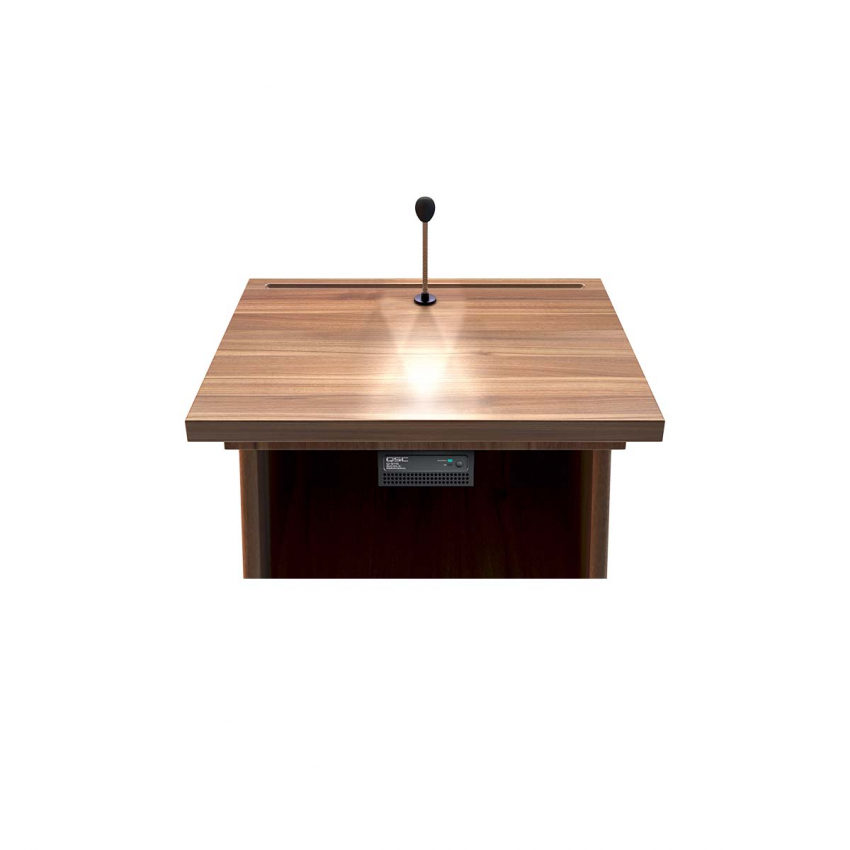

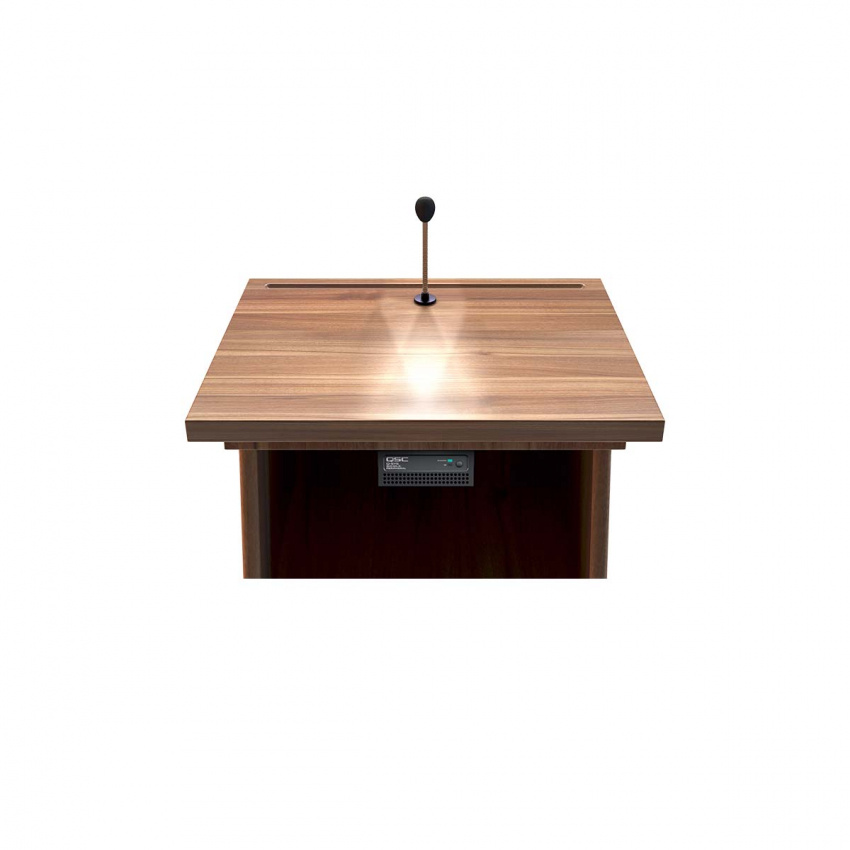

The QIO-S4 allows you to provide your Q-SYS system with greater flexibility to deploy Serial control connectivity where it’s most convenient. The QIO-S4 features four (4) bi-directional RS232 serial ports (including one port with RS422 and RS485 compatibility, enabling Q-SYS control over lighting systems, video displays, conference systems and more. Additionally, each of the QIO Series I/O expanders features a compact form factor that can be rack- or surface-mounted.
- Expanded I/O customization

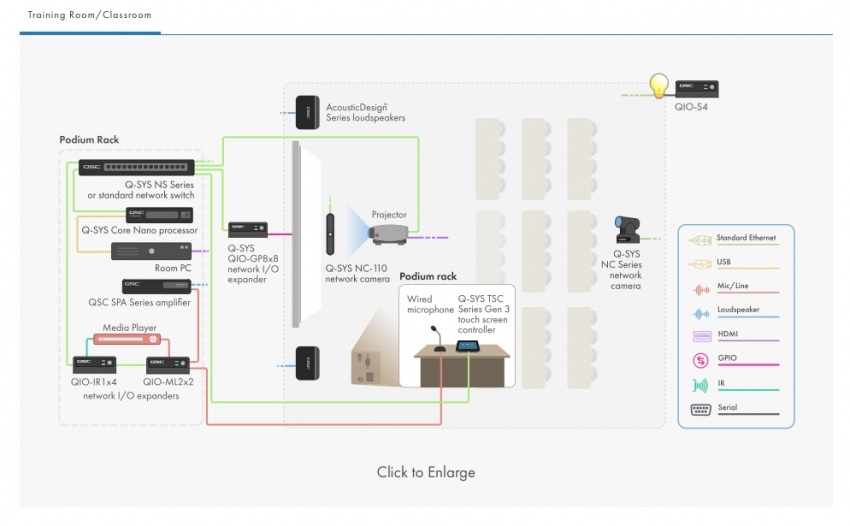

QIO Series is intended to present a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures. Additionally, QIO Series lets you customize your I/O configuration, and compliments the strengths of newer Q-SYS Core models that were designed with fewer onboard I/O options (Core Nano, Core 8 Flex, or NV-32-H (Core Capable)).
- Simplicity & scalability

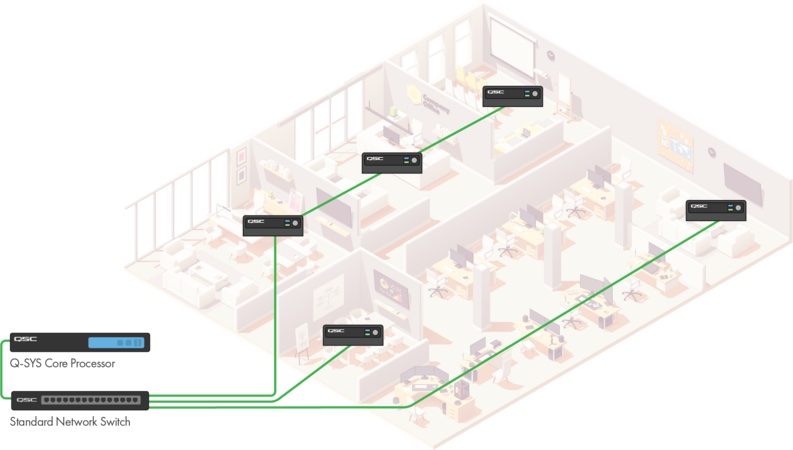

Daisy-chain up to four of the QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports, avoid rack clutter, and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are also PoE-capable, providing simple single cable connectivity (when devices aren’t daisy-chained).
- Designed for Q-SYS
The QIO Series deliver native network I/O customization to Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future. Learn more about Q-SYS.
