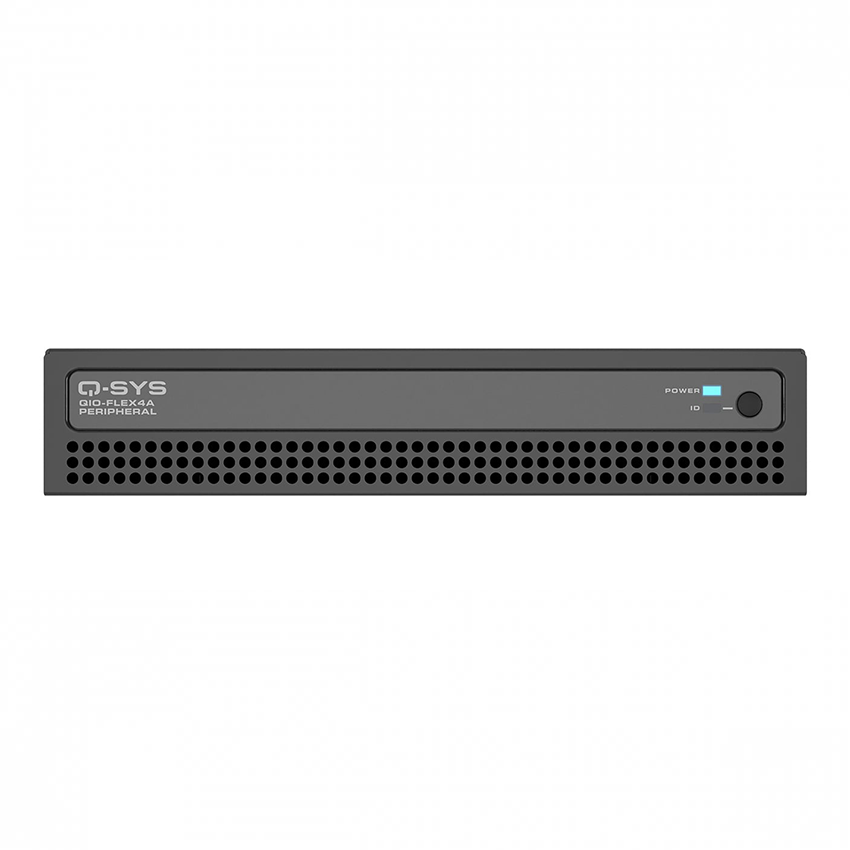

Q-SYS Expansion
Q-SYS Expansion

Q-SYS Expansion

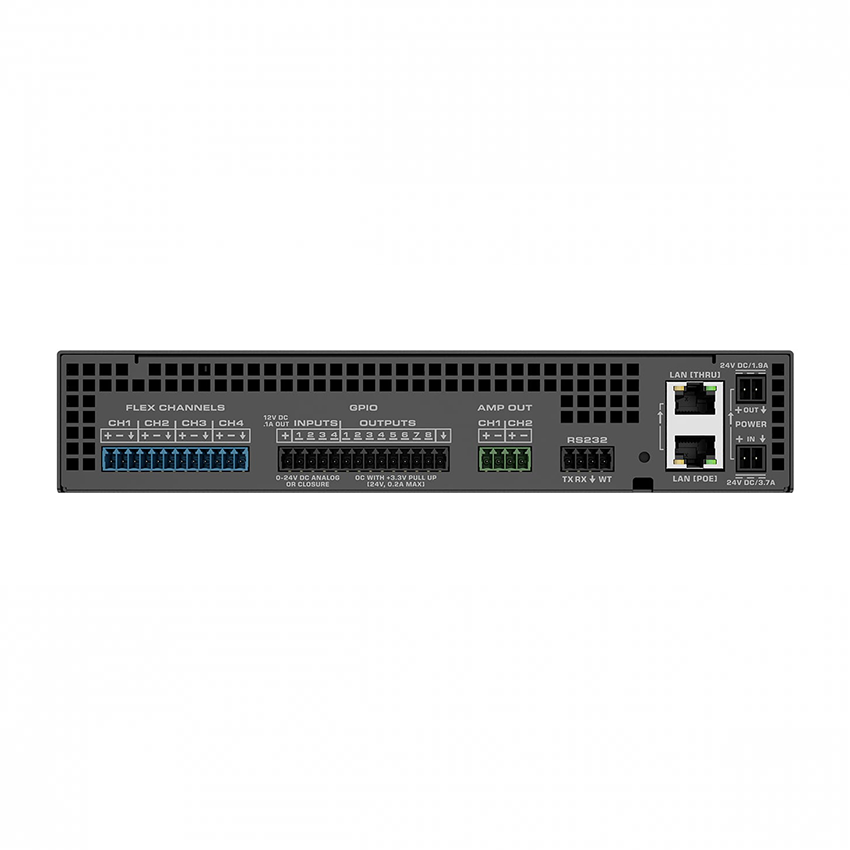

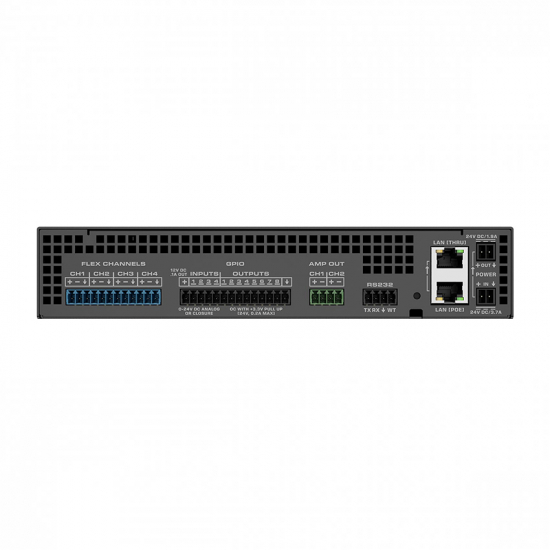

4 x Flex kanaler, GPIO 4 in / 8 ut, RS232, 2 x 9W vid 4 ohm, PoE

Varumärke:Q-SYS
Artnr: QSC-QIO-FLEX4A

Egenskaper

Q-SYS Expansion

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

The Q-SYS QIO-FLEX4A expands your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked audio and control devices. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.

  • Native network audio and control connectivity solution for Q-SYS
  • Four (4) software-configurable Flex audio I/O channels
  • 4 x 8 GPIO and one (1) RS232 serial port for integration with third-party control peripherals
  • Two (2) amplifier outputs for compact loudspeakers
  • Power-over-Ethernet (PoE) capable
  • Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
  • Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
  • Surface- or rack-mountable (1RU, half-rack width)
  • Includes surface mounting hardware

The QIO-FLEX4A allows you to provide your Q-SYS system with greater flexibility to deploy both audio and control connectivity where it’s most convenient. The QIO-FLEX4A provides four (4) software-configurable Flex audio I/O channels, 4 x 8 GPIO and one (1) RS232 serial port for integration with third-party control peripherals, and two (2) amplifier outputs for compact loudspeakers. It enables multi-purpose functionality as a consolidated network peripheral across a variety of presentation and collaborative discussion spaces, such as meeting rooms and legislative chambers. Additionally, each of the QIO Series I/O expanders features a compact form factor that can be rack- or surface-mounted.

QIO Series is intended to present a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures. Additionally, QIO Series lets you customize your I/O configuration, and compliments the strengths of newer Q-SYS Core models that were designed with fewer onboard I/O options (Core Nano, Core 8 Flex, or NV-32-H (Core Capable).

Daisy-chain up to four of the QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports, avoid rack clutter, and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are also PoE-capable, providing simple single cable connectivity (when devices aren’t daisy-chained).

The QIO Series deliver native network I/O customization to Q-SYS, a cloud-manageable audio, video, and control platform, built to deliver scalable, flexible AV solutions into the future.
