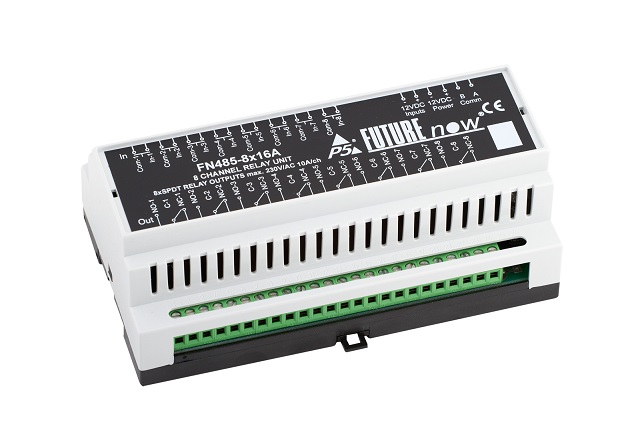

The FN485-8x16A 8 Channel Relay Module is used for switching any kind of load that do not exceed the output specifications either via its local inputs or via FN485 bus.
Main Features
Robust Operation
- All-purpose heavy-duty relay outputs for switching any type of load
- 8 x 230V/10A SPDT (NO & NC) dry contact outputs
- 8 x galvanically isolated multi-purpose digital inputs for contact sensors and manual operation
Ultimate Flexibility
- On/Off, Toggle and Monostable switching
- Standard DIN rail mount
- Standalone operation via the local inputs, even without a controller or bus connection
- Over 100 available bus commands
- 26 preset groups/scenes
- Digital inputs can also be used to monitor door/window contacts, motion, water leakage and any other sensor type
- Optional RS232 communication
Bus Connectivity
- Easy to connect two-wire daisy-chain bus
- Available communication protocol
Industry-Wide Interoperability
- Easy integration with home controllers
- Interoperability with any momentary contact switches available on the market
