- 1.5m long control cable for management of RS232 capable devices
- 9-pin D-type (D-Sub) to 3-pin Phoenix connectors
- Variable DIP-switch assignment of Tx, Rx and GND at Phoenix port
- For a device and brand specific configuration of the RS232 signal
- Compatible with Luxi, PureTools, mediahub™ and many 3rd party brands
RS232 control cable with D-type and Phoenix connectors, freely configurable

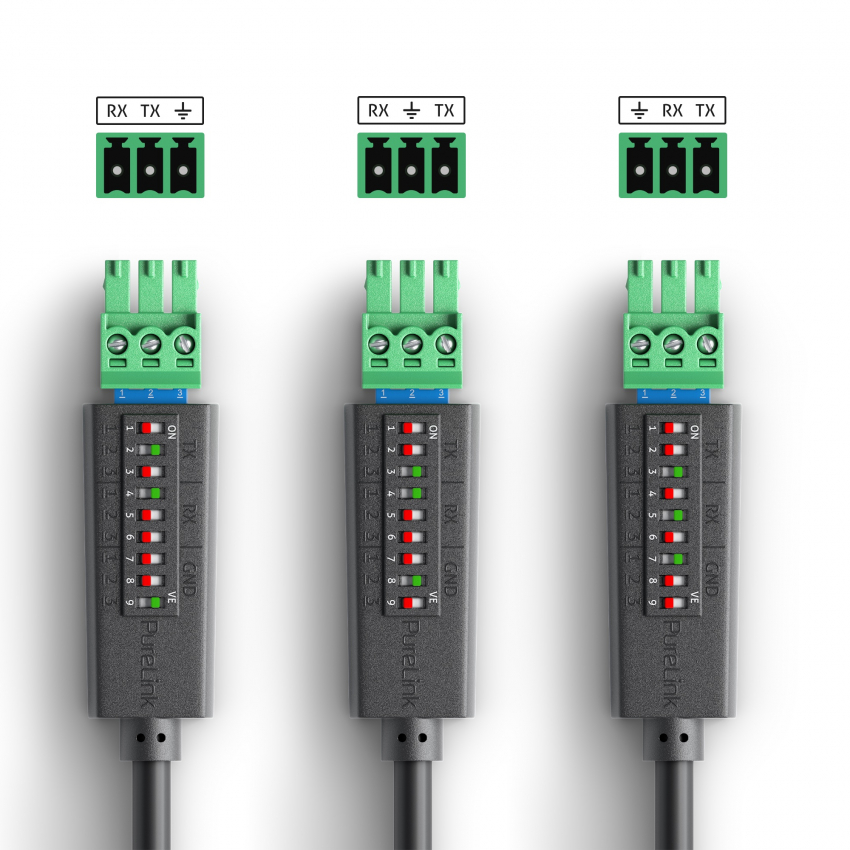

The PTM-RS100 RS232 control cable from PureTools features a 9-pin D-type connector and a 3-pin Phoenix connector on the other end. By means of 3x3 DIP switches the assignment of Tx, Rx and GND at the Phoenix output can be configured freely. This allows the RS232 control signal to be adapted according to device and manufacturer specific requirements without having to change the cable. This is probably not the first RS232 cable in your possession, but certainly the last one you will need!
PureTools - Professional Media Technology for all Purposes
The RS232 cable PTM-RS100 from the PureTools series is the smallest problem solver in the range and allows for an individually configured RS232 signal. So products of different manufacturers can be controlled with only one RS232 cable.

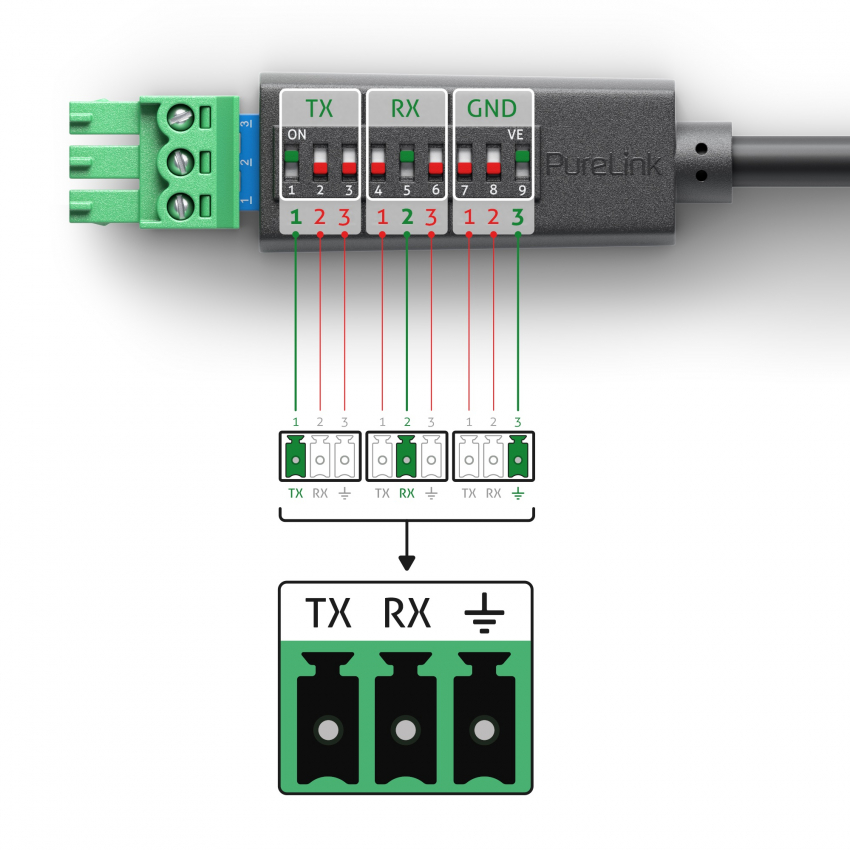

Of course the whole thing works tool-free by means of DIP switches on the top of the cable, which determine the individual assignment of Tx, Rx and GND at the Phoenix output. This way, within a few seconds the respective assignment of the device can be adapted to the target configuration without the need for any tools.
Thanks to its very strong contact force with integrated strain relief and a solid transition of the robust connector to the bend protection, signal failures are now finally a thing of the past, even for RS232. This makes it perfectly suited for heavy-duty field use and offers maximum operational reliability for any installation.

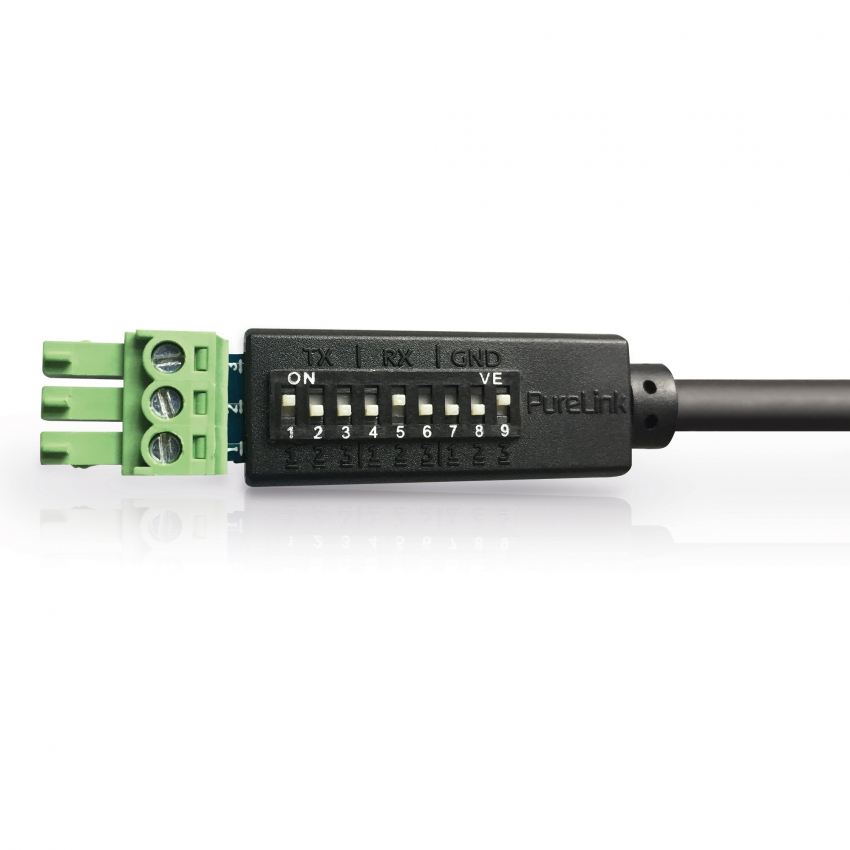

The cable is equipped with a 9-pin D-type (D-Sub) connector on one side and a 3-pin Phoenix terminal on the other side. The cable length is 1.5 meters, perfect for hard-to-reach devices.
The control cable is compatible with various brands from the PureLink portfolio, including Luxi Electronics, mediahub and many PureTools. Compatibility is not limited to these devices; theoretically, the cable is suitable for all devices with an RS232 port, provided the ports fit or are adapted accordingly.
The universal RS232 cable should not be missing in any workshop, toolbox or service car.
