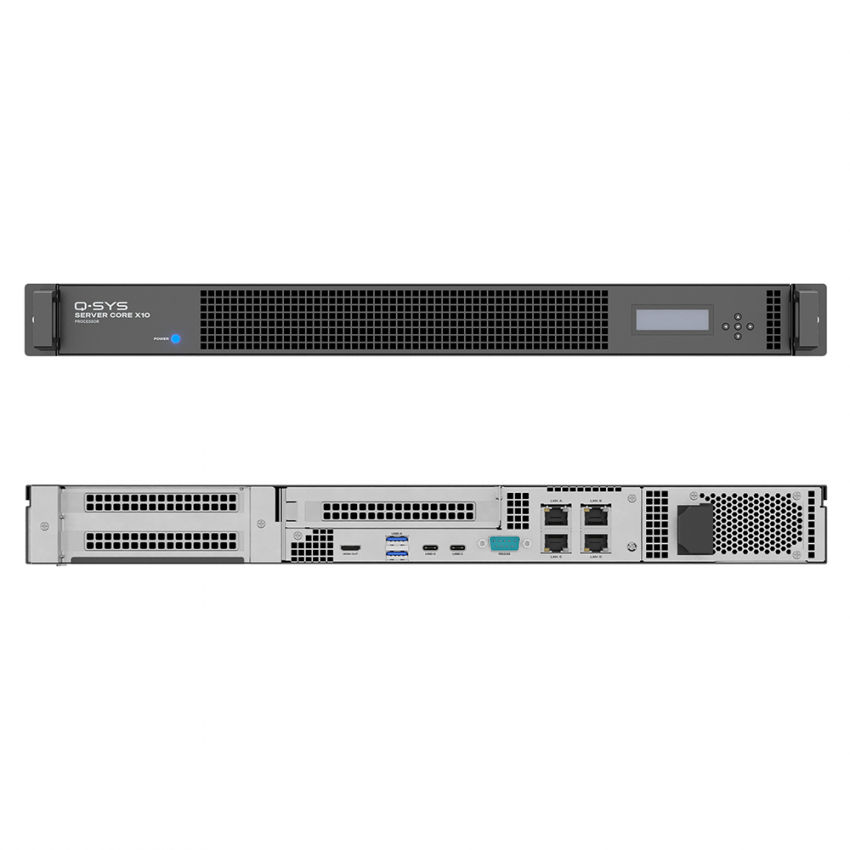

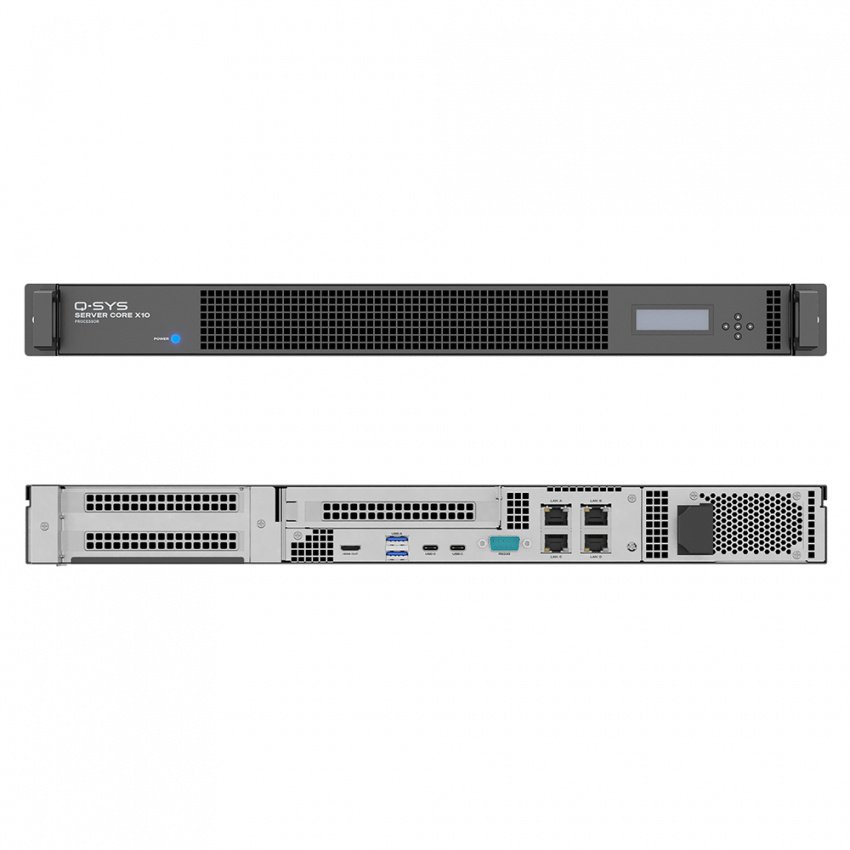

The Server Core X10 combines the Q-SYS Full Stack AV Platform with enterprise-grade server hardware to deliver a flexible and scalable audio, video and control solution for medium and large scale applications. The Server Core X10 functions effectively as a central processor for multiple zones or spaces with distributed network I/O or paired with distributed processing.
- 256 x 256 networked audio channels (Q-LAN / AES67)
- 64x AEC channels @ 200 ms
- Includes 8 x 8 Software-based Dante channels (licensable up to 128 x 128)
- Supports up to twelve (12) Q-SYS NM-T1 tabletop microphones
- Up to 32 VoIP softphone instances
- 64 x 64 Media/WAN channel capacity
- 16 multitrack playback channels (up to 128 with optional stackable feature license)
- 4 multitrack record channels
- Two (2) 2.5 Gbps Ethernet ports for redundant networked audio
- Two (2) 2.5 Gbps independent, auxiliary Ethernet ports for segregation of network services such as VoIP, SNMP, LLDP, LDAP and WAN Media streaming
- Onboard 256 GB media drive
- 1 RU form factor
New Class of Q-SYS Processors
Q-SYS X Class Server Cores combine the Q-SYS Full Stack AV Platform with industry-proven IT server hardware to meet the flexibility and scalability demands of the applications from corporate and higher education to hospitality, entertainment and beyond. These Cores are fully networked, making them ideal for running centralized, mission-critical AV services that pair with edge-based network I/O and/or distributed processing.
A Choice for Any Application
Q-SYS Server Core X10 adds a new processing tier to the Q-SYS processing portfolio, offering 3x the processing power of the Core 24f along with 256 x 256 network I/O capacity (including up to 128 x 128 Dante network audio capacity) to ensure there’s a Q-SYS processing solution that’s right-sized for any application.
Singular Software Platform
All Q-SYS Cores are driven by the Q-SYS Full Stack AV Platform which delivers a fully integrated audio, video and control solution that offers simple integration and software-based scalability. All Q-SYS Cores leverage the same, singular software-based foundation that offer unique flexibility to manage any processing topology, from the building or venue-wide AV services to individual collaboration spaces.
