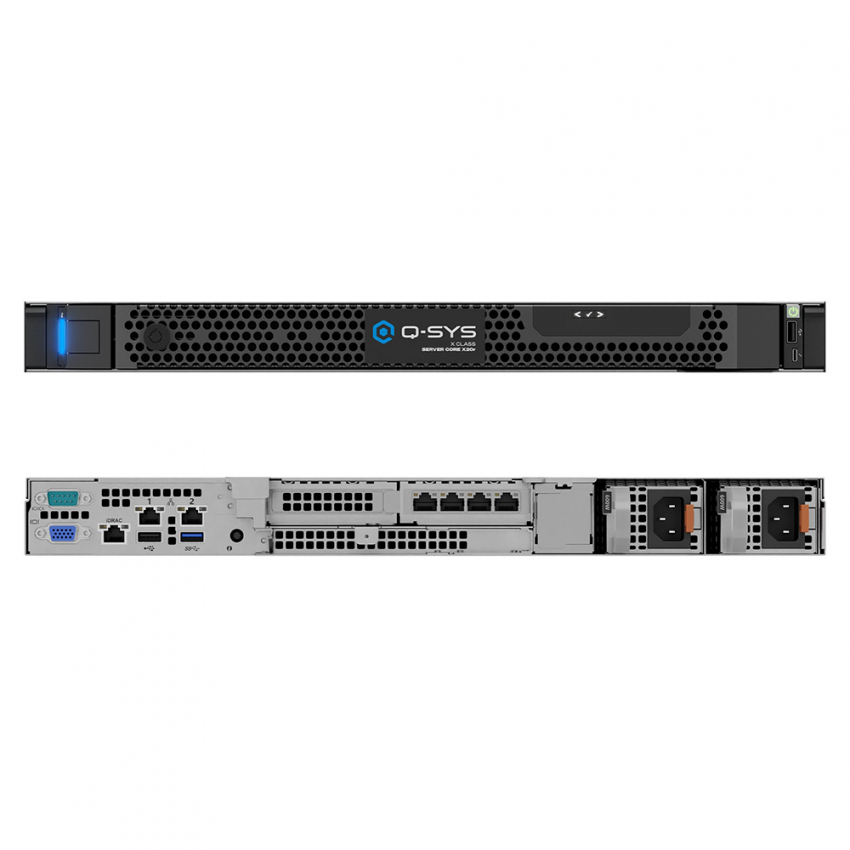

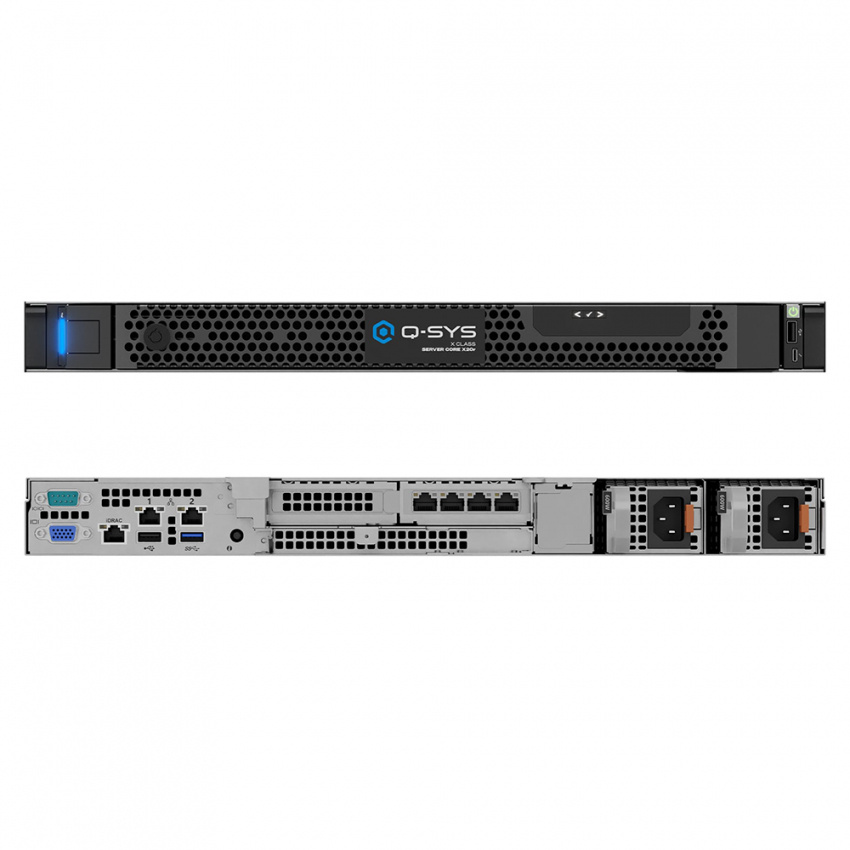

The Server Core X20r combines the Q-SYS Full Stack AV Platform with enterprise-grade Dell server hardware to deliver a flexible and scalable audio, video and control solution for larger scale applications in corporate, higher ed, hospitality, entertainment and beyond. It enables applications requiring increased processing capabilities and network channel capacity by serving as a central processor and efficiently distributing network I/O to where it is needed most.
- 384 x 384 networked audio channels (Q-LAN / AES67)
- 128x AEC channels @ 200 ms
- Includes 8 x 8 Software-based Dante channels (licensable up to 256 x 256)
- Dual redundant, hot-swappable power supplies
- Supports up to sixteen (16) Q-SYS NM-T1 tabletop microphone
- Up to 64 VoIP softphone instances
- 96 x 96 Media/WAN channel capacity
- 16 multitrack playback channels (up to 256 with optional stackable feature license)
- 4 multitrack record channels
- Two (2) gigabit Ethernet ports for redundant networked audio
- Two (2) independent, gigabit auxiliary Ethernet ports for segregation of network services such as VoIP, SNMP, LLDP, LDAP and WAN Media streaming
- Onboard 480 GB media drive
- 1 RU form factor
New Class of Q-SYS Processors
Q-SYS X Class Server Cores combine the Q-SYS Full Stack AV Platform with industry-proven IT server hardware to meet the flexibility and scalability demands of the applications from corporate and higher education to hospitality, entertainment and beyond. These Cores are fully networked, making them ideal for running centralized, mission-critical AV services that pair with edge-based network I/O and/or distributed processing.
A Choice for Any Application
Q-SYS Server Core X20r offers 2x the DSP processing power of the Server Core X10 (driven in part by its Dell server hardware) to support 384 x 384 network I/O capacity (including up to 256 x 256 Dante network audio capacity) and advanced features like redundant, hot-swappable power supplies to meet the modern demands of the most vital AV applications.
Singular Software Platform
All Q-SYS Cores are driven by the Q-SYS Full Stack AV Platform which delivers a fully integrated audio, video and control solution that offers simpler integration and software-based scalability. All Q-SYS Cores leverage the same, singular software-based foundation that offer unique flexibility to manage any processing topology, from the building or venue-wide AV services to individual collaboration spaces.
