Robust Operation

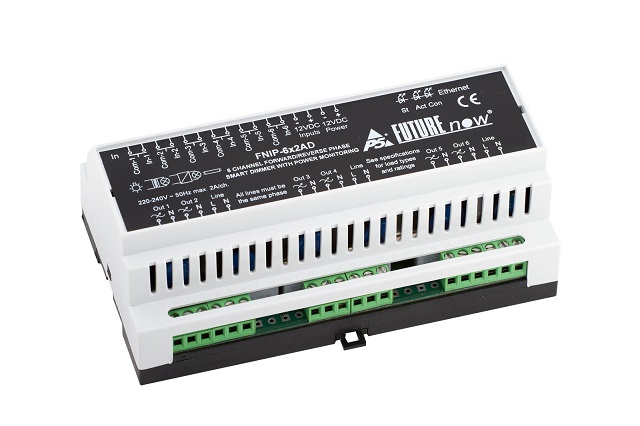

- All-in-one dimmer
- 6 outputs for switching and dimming 6 lighting circuits
- 6 galvanically isolated digital inputs for contact sensors or manual operation
- Overheat protection (both from software and hardware)
Ultimate Flexibility
- Switching any load types
- Both trailing and leading edge dimming (dimming of resistive, capacitive and inductive loads)
- Automatic load type detection
- Switching (On/Off) any loads
- Possibility to combine two outputs for more wattage
- Standard DIN Rail mount
- Voltage, frequency, power consumption and temperature metering
- 100 dim levels (800 level hardware resolution)
- Preset dim level – outputs will go to that level when turned on
- Dim level memory (if preset dim level is set to zero) - modules recall their last dim level when next turned on
- Adjustable minimum and maximum dim levels
- Adjustable ramp rates
Enhanced Connectivity
- New TCP/IP interface offers remote control and advanced management
- Built-in web server for configuration, control and monitoring
- Operation via the local computer network or over the Internet

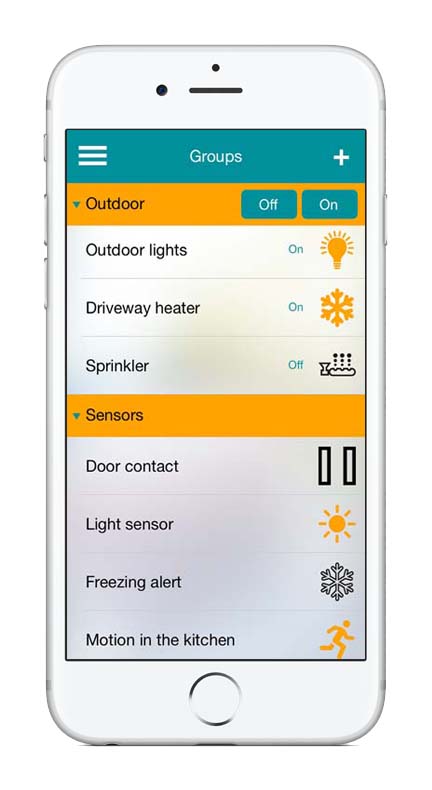

- Remote control and monitoring from network enabled smartphones and tablets
- Multiple users with different user rights
- TCP communication with simple ASCII commands
- Available communication protocol
- Automatic event reporting of input and output status changes
- Firmware upgrade via LAN
Industry-Wide Interoperability
- Easy integration with home controllers
- Interoperability with any momentary contact switches available on the market
