The D16Mio is a high performance, high channel density networked audio interface supporting Dante™ with AES67 interoperability.  The D16Mio features 16 channels of studio grade microphone preamplifiers using THATCorporation mic preamp technology, with up to 51 dB of digitally controlled gain in 3 dB steps.  Each mic input also supports P48 switchable phantom power and a switchable pad accommodation of pro line level inputs.

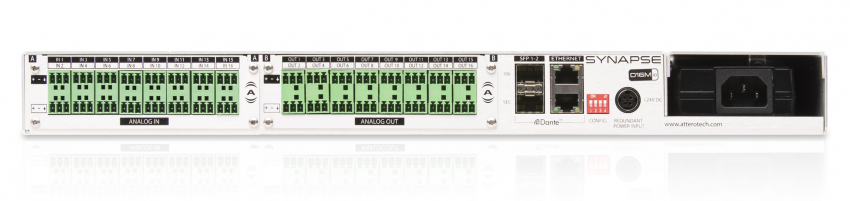

The balanced line level outputs feature digitally controlled output attenuation from 0 to -100 dB.  All I/O are available independently via the Dante™ / AES67 network audio interfaces.  The D16Mio is available in terminal block or DB-25 options for optimum ease of connectivity and wiring.

THE D16MIO IS AN EXCELLENT SOLUTION FOR:
• Audio expansion for any DSP based AV systems
• House of worship and theaters
• Analog and digital snake alternative

Features:
• 16 studio-grade mic preamps with line level capability as well
• Front panel network control of mic preamp gain, phantom power, mic/line input sensitivity
• 16 line level balanced outputs with front panel or network level control
• Useful for studio, live, rental and fixed installations requiring high numbers of high quality audio I/O
• Supports Dante™/AES67 Interoperablity Mode
• 16/24 bit, 44.1/48/88.2/96 kHz analog to Dante™ conversion

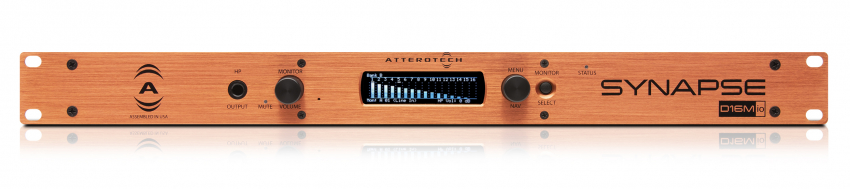

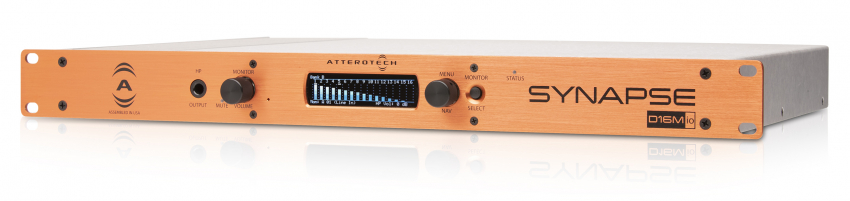

• Easily assignable front panel headphone access, volume control and source selection - includes local input and Dante™ monitoring modes
• Integrated power supply with optional external supply for applications  requiring redundant power requirements
• Integrated SFP ports for direct connection to fiber for long haul signal extension applications
