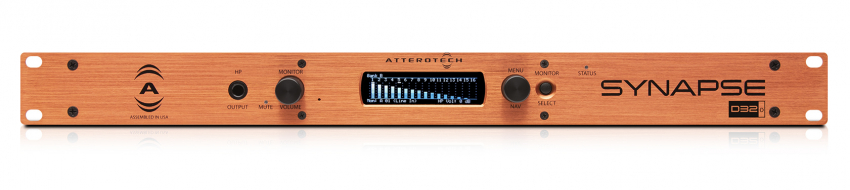

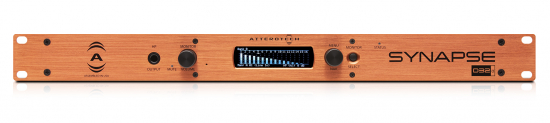

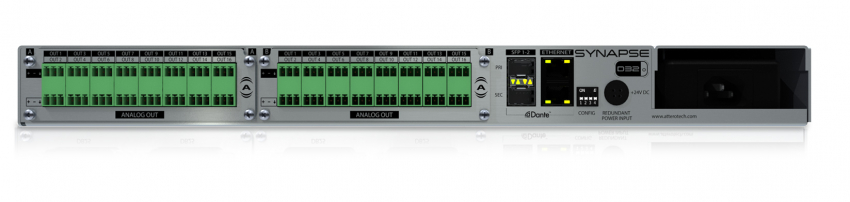

Synapse D32o Specifications:
| Analog Outputs | |
| Maximum output level | +24 dBu |
| Output impedance | 200 Ω |
| Output type | 3-pin XLR-F |
| Headphone Output | |
| Connector | 0.25 in TRS jack |
| Controls | Mute / volume encoder |
| Load | 32 Ω minimum |
| Audio Networking | |
| Protocol support | Dante™ with AES67 support |
| Channel count | 32 Dante RX |
| Modes | Switched or Redundant mode |
| Ports | 2 x 1 Gb copper on RJ-45, 2 x 1 Gb SFP |
| General | |
| Dimensions (HWD) | 1.75 x 19 x 12.5 in (44.5 x 482.6 x 5080 mm) |
| Weight | 6 lb (2.72 kg) |
