With its compact and portable design, the System 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering (ENG) and every mobile application in between, the receiver features multiple mounting options to accommodate a variety of cameras and recording devices.
Poduct Features

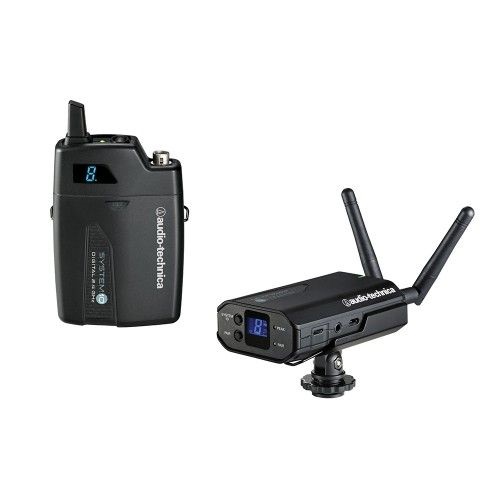

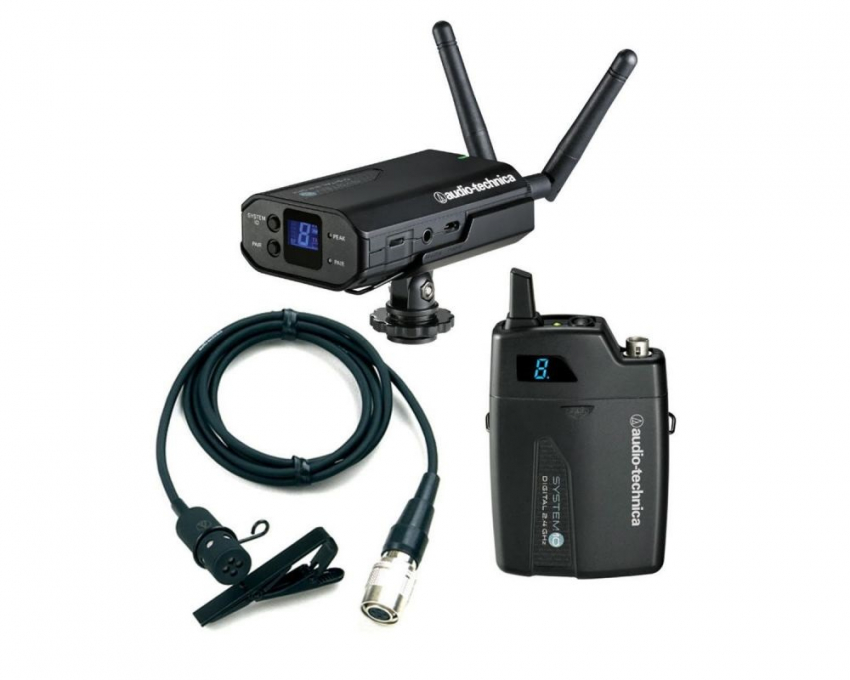

- ATW-R1700 receiver and ATW-T1001 UniPak transmitter
- Select a Wireless Essentials microphone or cable to complete the system
- Compact and portable design
- Camera-Mount high-fidelity digital wireless system
- Ideally positioned to capture media on the go
- Perfect for video production and electronic news gathering
Product Specifications
General
- Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Dynamic Range: >109 dB (A-weighted), typical
- Total Harmonic Distortion: <0.05% typical
- Operating Range: 30 m (100') radius, 60 m (200') diameter typical
- Operating Temperature Range: 0° C to +40° C (32° F to 104° F)
- Frequency Response: 20 Hz to 20 kHz
- Audio Sampling: 24 bits / 48 kHz
Receiver
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level: 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
- Battery: Internal Battery: 3.7V rechargeable Li-ion battery
- Battery Life: 12 hours
- Battery Charging Time: 4 hours 30 minutes
- Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
- Dimensions: 56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
- Weight: 105 grams (3.7 oz)
Body-Pack Transmitter
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Input Connections: Four-pin Locking Connector
- Pin 1: GND, Pin 2: INST INPUT,
- Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
- Batteries: Two 1.5V AA
- Battery Life: >7 hours (alkaline)
- Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
- Weight: 100 grams (3.5 oz)
Handheld Transmitter
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Batteries: Two 1.5V AA
- Battery Life: >7 hours (alkaline)
- Dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
- Weight: 280 grams (9.9 oz)
