With its compact and portable design, the System 10 Digital Wireless Camera System is ideal for video production, reporting and all intermediate mobile applications, the receiver offers several mounting options to suit a wide variety of cameras and recording devices. The channel selection, instant timing and configuration to camera models make it extremely easy to use, while its digital wireless operating at 24-bit / 48 kHz brings ultimate sound quality and reliable performance in the band 2.4 Ghz, away from interference of DTV or 4G.

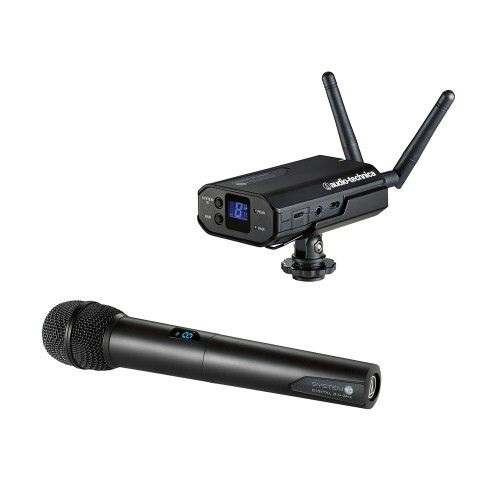

The ATW-1702 system includes an ATW-R1700 receiver and an ATW-T1002 handheld dynamic cardioid microphone and transmitter. There is also a complete system (ATW-1701/P) with lavalier microphone or (ATW-1701) with just the bodypack transmitter and no microphone.
Product Features
- 24-bit / 48 kHz Digital wireless system, combining excellent sound quality and reliability
- Frequency range 2.4 GHz, operating outside of DTV or 4G bands
- Automatic Frequency Selection. Plug & Play. Ease of use and reliability
- Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
- Ultra compact and lightweight receiver (105 g) with multiple mounting options
- Extremely easy to use, with channel selection, timing and instant setup
- Output jacks balanced and unbalanced with selectable level control for use with most cameras and recording devices (3.5mm stereo mini jack output)
- Internal rechargeable battery with a life of 12 hours
- Independent headphone jack and volume control for local audio cueing
- Audio output attenuator on the receiver (0dB / 10dB / 20dB) for adjusting the sensitivity
Product Specifications
General
- Operating Frequencies: 2.4 GHz ISM band
- Frequency Response: 20 Hz to 20 kHz (Depending on microphone type)
- Operating Range: 30 m (100') radius, 60 m (200') diameter typical (Open range environment with no interfering signals)
- Dynamic Range: >109 dB (A-weighted), typical
- Total Harmonic Distortion: <0.05% typical
- Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Receiver
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level: 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
- Battery Type: Internal Battery: 3.7V rechargeable Li-ion battery
- Battery Current/Life: 12 hours (Depending on environmental conditions)
- Battery Charging Time: 4 hours 30 minutes (Depending on environmental conditions)
- Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
- Dimensions: 56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
- Weight: 105g
Handheld Transmitter
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Battery Type: Two 1.5V AA not included
- Battery Life: >7 hours (alkaline) (Depending on battery type and use pattern)
- Dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
- Net Weight: 280g without batteries
