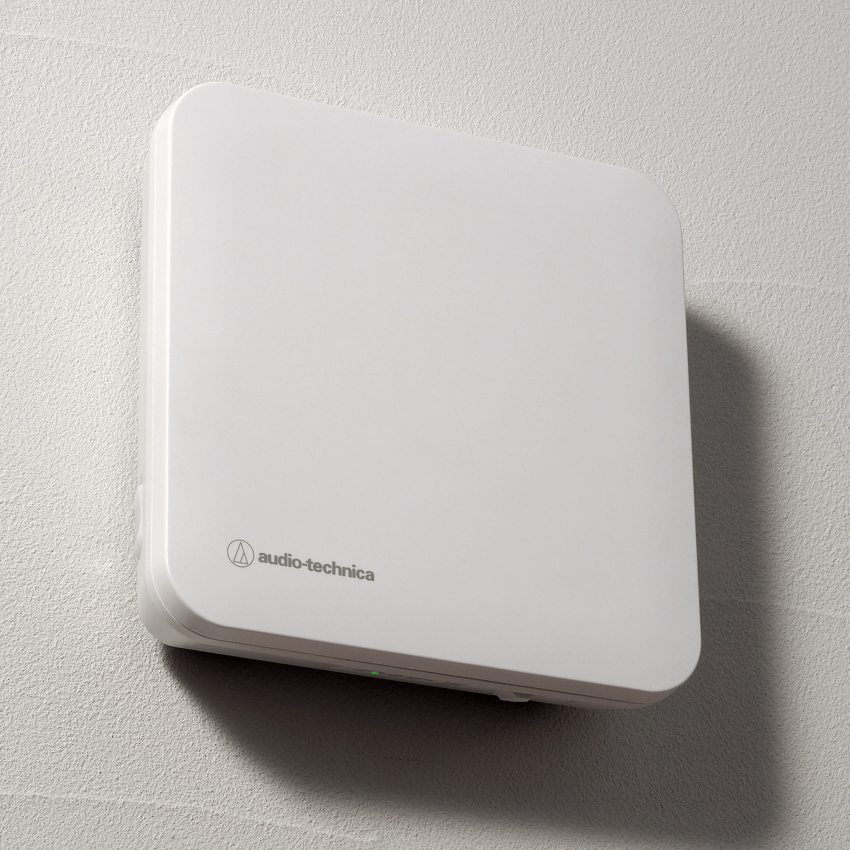

• Low-profile UHF antenna mounts to wall or ceiling
• 470-990 MHz operating range
• 4-position gain selector (-10 dB/0 dB/+6 dB/+12 dB)

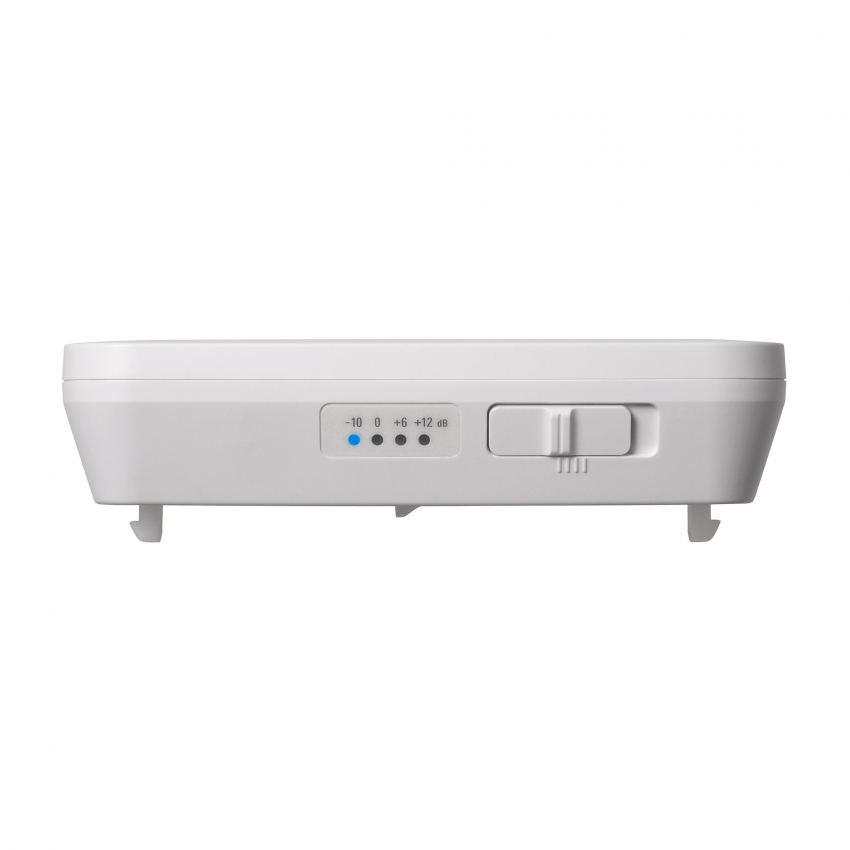

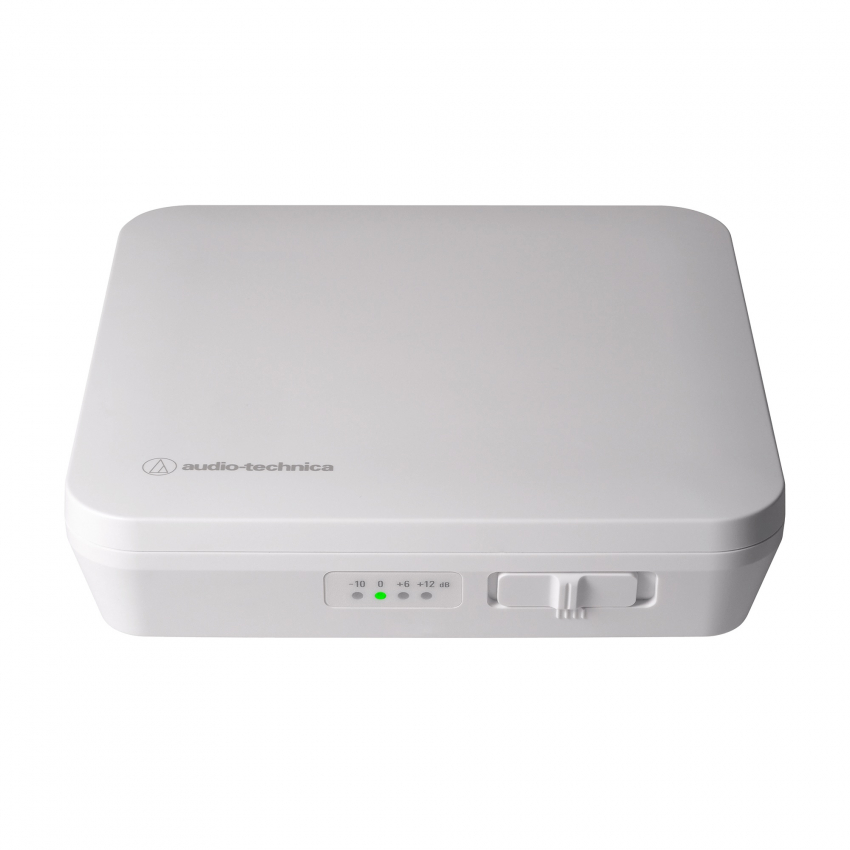

• LED gain setting indicator

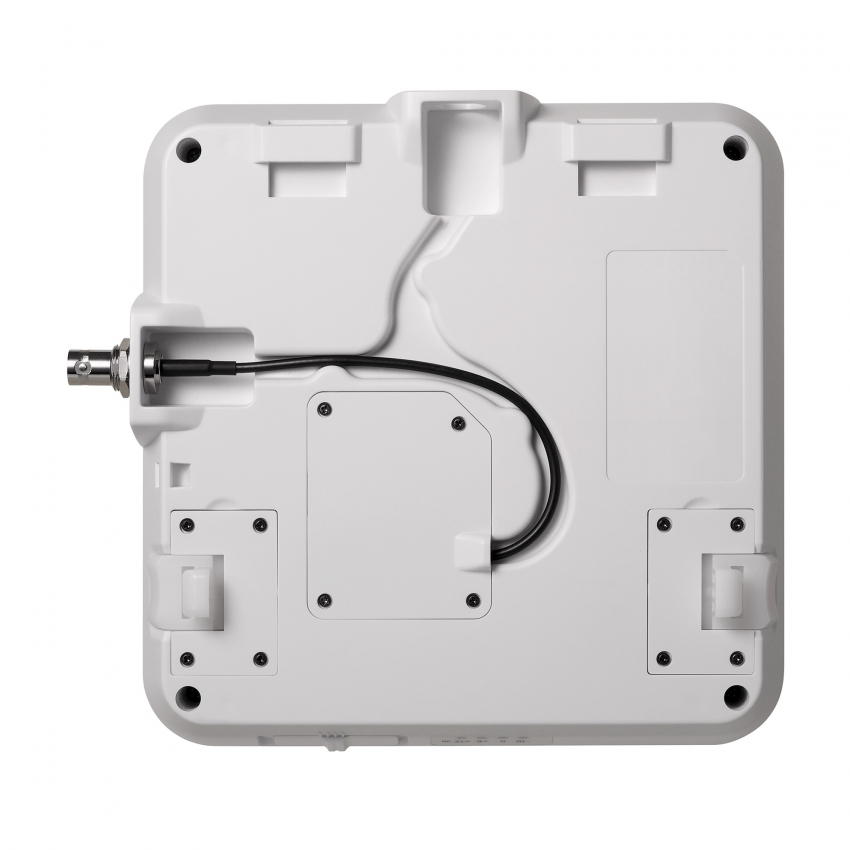

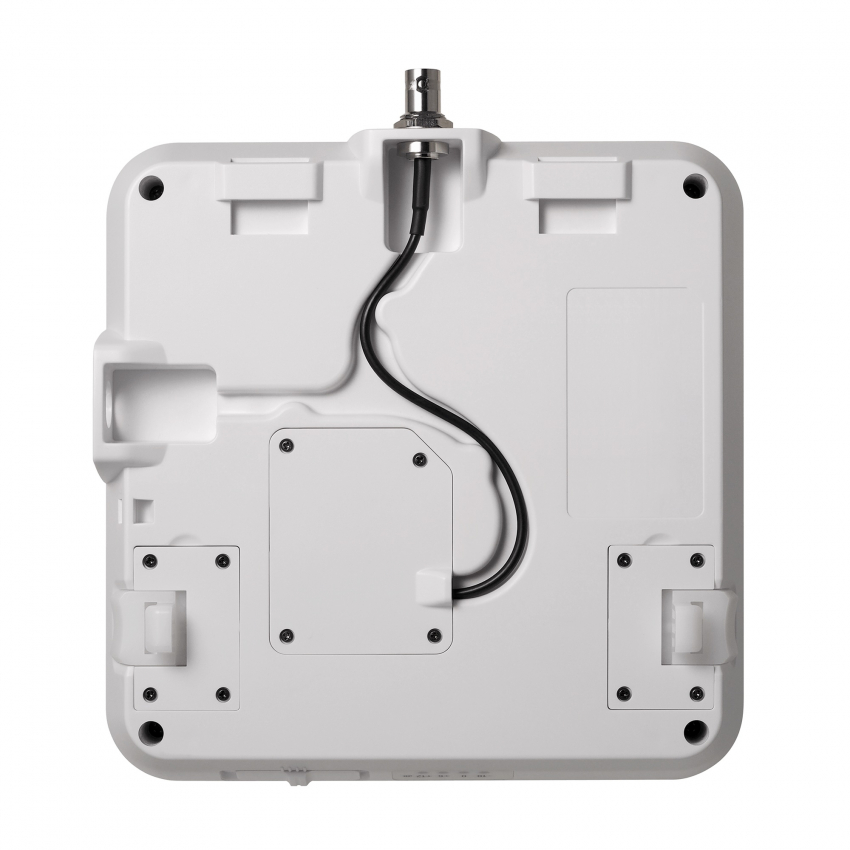

• BNC cable may be routed to the side, top or rear of the antenna

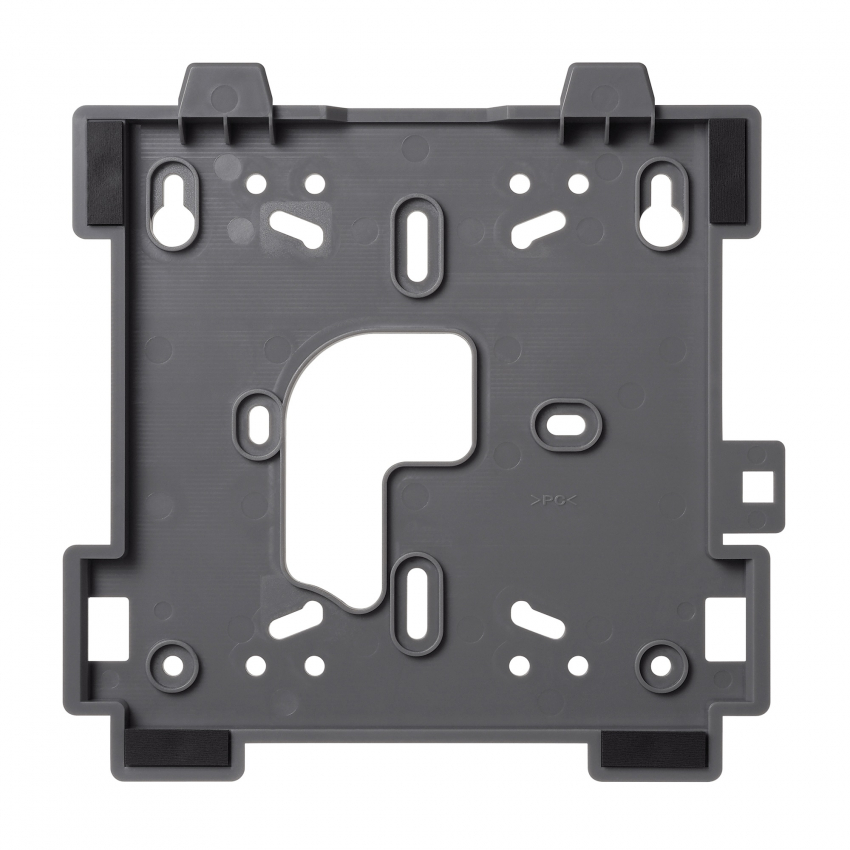

• Includes mounting bracket and screws

The ATW-A410P is a low-profile UHF (470-990 MHz) antenna that mounts to a wall or ceiling. It features a 4-position switchable amplifier (-10 dB/0 dB/+6 dB/+12 dB) to compensate for cable loss, along with an LED indicator to display the current gain setting. To accommodate various installation environments, the antenna’s BNC cable can be configured to exit from the top, side or rear of the antenna. Includes mounting bracket and screws. Specifications Frequency range: 470 to 990 MHz Connector: BNC-J Impedance: 50 ohms Power requirement: +12V DC, 60 mA or less OIP3: >30 dBm typical (within specified bandwidth) Gain: -10 dB/0 dB/+6 dB/+12 dB Operating temperature range: -10° C to 50° C (14° F to 122° F) Dimensions: 175 mm (6.9") W × 175 mm (6.9") D × 50 mm (2.0") H (without bracket) Weight: 390 g (13.8 oz) (without bracket) Accessories: Mounting bracket, screws
