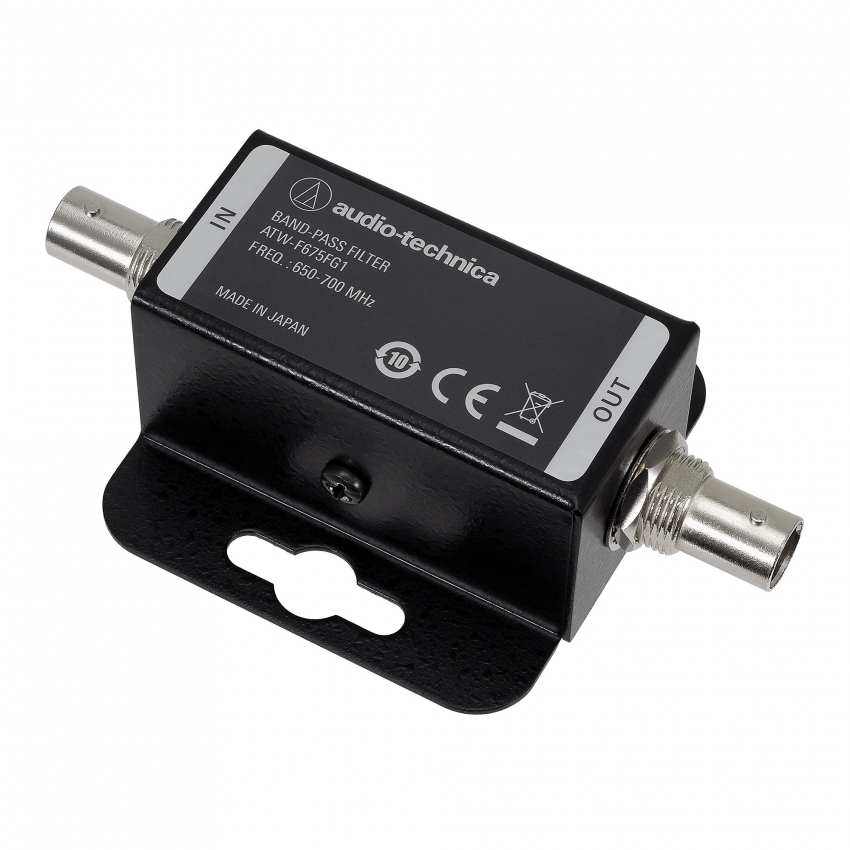

Band-Pass Filter Pair
These band-pass filters help eliminate “out-of-band” signals that can saturate the front end of wireless microphone receivers. They can also greatly improve dynamic range by reducing noise and third-party interference outside the operating range.
Each is fitted with industry-standard BNC-type connectors, requiring no power or user configuration and allowing easy connection to wireless microphone antennas to reduce noise and improve wireless system performance.
Note, the maximum pass-through current is 420 mA. To avoid malfunction, make sure the pass-through current is less then 420 mA.
- Passive operation
- Industry-standard BNC-type connectors
- Pair
Specifications
| Antenna & Distribution | |
|---|---|
| Frequency Range | 470 to 530 MHz (ATW-F500DE2) 530 to 590 MHz (ATW-F560EE1) 590 to 650 MHz (ATW-F620EF1) 650 to 700 MHz (ATW-F675FG1) |
| Impedance | 50 ohms |
| High Frequency Transmission Loss | 4 dB (typical) |
| Current Pass Through | 420 mA |
| Operating Temperature Range | Allowable: -10 to +60 °C Recommended: +15 to +35 °C |
| Connections | BNC-J x 2 |
| Dimensions | 99.8 mm × 60 mm x 30 mm (W × D × H) |
| Weight | 136 g |
