unDX2IO+ XLR In/Ut
unDX2IO+ XLR In/Ut

unDX2IO+ XLR In/Ut

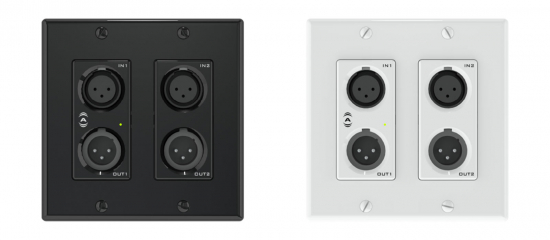

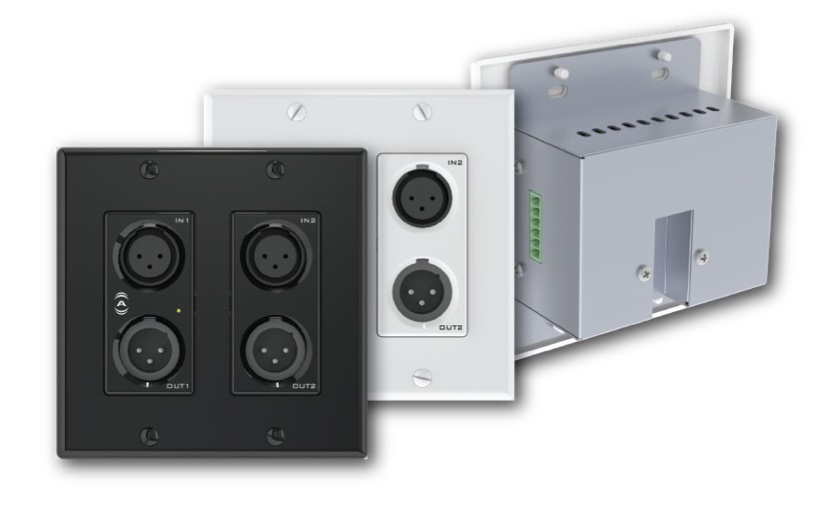

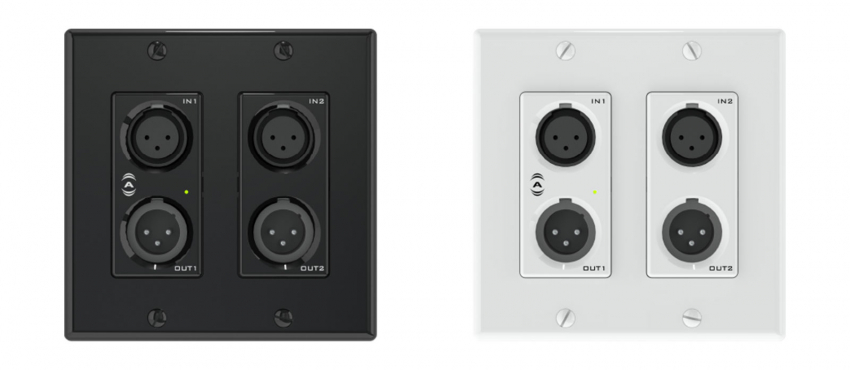

Väggpanel 2 x XLR (in) + 2 x XLR (ut), Dante/AES67, PoE

Varumärke:Attero Tech by QSC
Artnr: QSC-UNDX2IO

Egenskaper

unDX2IO+ XLR In/Ut

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

AtteroTech Dante/AES67 Wall Plate, 2x2 Multi-IO, PoE, Q-SYS

The unDX2IO+ is a cost-effective multi-IO Dante™ audio network wallplate, featuring two balanced mic/line XLR inputs, two balanced XLR line outputs and two balanced line level inputs. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO+ is designed to fit into all dual-gang US junction boxes, mud rings and old work brackets. This accessory is PoE enabled, so all connectivity (power, control, and data) is provided by a single CAT-5/6 cable.

Features
• Dante Domain ManagerTM ready
• Small form factor allows for easy co-location near analog sources or sinks
• PoE powered (802.3af)
• Four input gains to accommodate common line levels and dynamics
• +48 V phantom power per channel
• Analog output gain is software-adjustable between 0 dB and -60 dB to accommodate all types of line input audio equipment - both consumer and professional levels
• Industry standard +20 dBu maximum input levels (at 0 dB input gain) and +20 dBu maximum output levels
• Q-SYS Control plugin available – no programming required

Audio Inputs
Input types3-pin XLR (balanced and RF filtered)
Gain-18 dB, -3 dB, +25 dB, +40 dB, software-selectable
Phantom power+48 V, software-selectable
Audio Outputs
Output typeBalanced line level with automatic muting on loss of Dante signal
Maximum output level+20 dBu
Dante Network
Physical levelStandard ethernet
ConnectorSingle RJ-45
Supported sample rates44.1 kHz, 48 kHz
General
Dimensions (HWD)4.2 x 3.5 x 2 in (114.3 x 88.9 x 50.8 mm)
Decora wall plate (2-gang): 4.87 x 4.94 x 0.08 in (123.7 x 125.48 x 2.03 mm)
Weight0.6 lb (.27 kg)
