- HDMI 2.0 compliant (HDCP 2.2) pass-through support for video resolutions up to 4K60 4:4:4
- Q-SYS control plugin enables easy integration into the Q-SYS Ecosystem

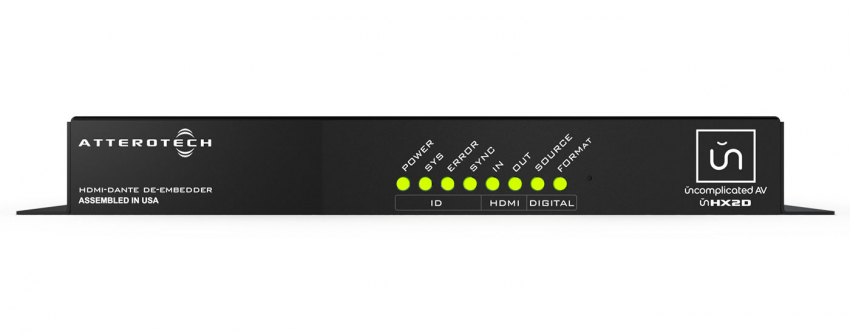

- Front panel indication of Dante status, HDMI connectivity and digital audio format
- Software-manageable EDID settings
- 400 ms of adjustable lip sync delay on the Dante audio output path
- Software configuration is supported in unIFY Control Panel software
unHX2D Details:
| Analog Audio Inputs | |
| Input types | Balanced 3-pin line level |
| Input sensitivity | –10 dBV (consumer) or +4 dBu (professional) software selectable |
| Maximum input levels | +20 dBu (+/- 0.5 dB) @ +4 dBu input sensitivity +10 dBV (+/- 0.5 dB) @ -10 dBV input sensitivity |
| Analog Audio Outputs | |
| Output type | Balanced 3-pin line level |
| Maximum output level | +20 dBu (+/- 0.5 dB) |
| S/PDIF Audio Inputs | |
| Supported formats | S/PDIF 2ch PCM, 24 bit |
| Supported sample rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz |
| S/PDIF Audio Output (Mirrors HDMI Input Audio) | |
| Supported formats | S/PDIF 2ch PCM, 24 bit Compressed multi-channel in 'Pass Through' mode |
| Supported sample rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz |
| HDMI Audio Input | |
| Supported formats | 2ch PCM, 24 bit |
| Supported sample rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz |
| HDMI Audio Output | |
| Supported formats | 2ch PCM, 24 bit Compressed multi-channel in 'Pass Through' mode |
| Supported sample rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz |
| Video | |
| HDCP | v2.2 |
| HDMI | v2.0 |
| Supported resolutions | up to 4K60 4:4:4 |
| Max color depth | 48 bit |
| Connectors | HDMI Type A |
| Dante Network | |
| Physical Layer | Ethernet |
| Connector | Single RJ-45 |
| Supported sample rates | 48 kHz |
| Minimum Dante network latency | 1 ms |
| General | |
| PoE | 802.3af PoE PD compliant |
| Physical Dimensions (HWD) | 1 x 9.2 x 4 in (25.4 x 233.7 x 101.6 mm) |
| Weight | 1.3 lb (.6 kg) |
