Audio Technica Omnidirectional Condenser Suspension Microphone Phantom Only
Perfect for speech, theater, orchestra and choir and recording the U853R cardioid condenser hanging microphone is equipped with UniGuard, innovations that offer unsurpassed immunity from radio frequency interference. With a consistent cardioid polar pattern, the mic offers natural sound from any angle, and superior gain before feedback. It is phantom powered and features an integral 80 Hz low cut UniSteep, filter that reduces pickup of low frequency ambient noise. The microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine, line cardioid polar patterns.
- Designed for suspension over choirs, instrumental groups and theater stages
- Superior off axis rejection for maximum gain before feedback
- UniGuard, RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep, filter provides a steep low frequency attenuation to improve sound pickup without affecting voice quality
- Accepts interchangeable elements to permit angle of acceptance from 90, to 360,
- Low profile design with low reflectance finish for minimum visibility
- Black finish
Product Specifications
General
- Element: Fixed charge back plate, permanently polarized condenser
- Polar Pattern: Cardioid
- Frequency Response: 30-20,000 Hz
- Low Frequency Roll Off: 80 Hz, 18 dB/octave
- Open Circuit Sensitivity: 39 dB (11.2 mV) re 1V at 1 Pa
- Impedance: 250 ohms
- Maximum Input Sound Level: 139 dB SPL, 1 kHz at 1% T.H.D.
- Dynamic Range: 115 dB, 1 kHz at Max SPL
- Signal to Noise Ratio: 70 dB, 1 kHz at 1 Pa
- Phantom Power Requiremens: 11-52V DC, 2 mA typical
- Switch: Flat, roll-off

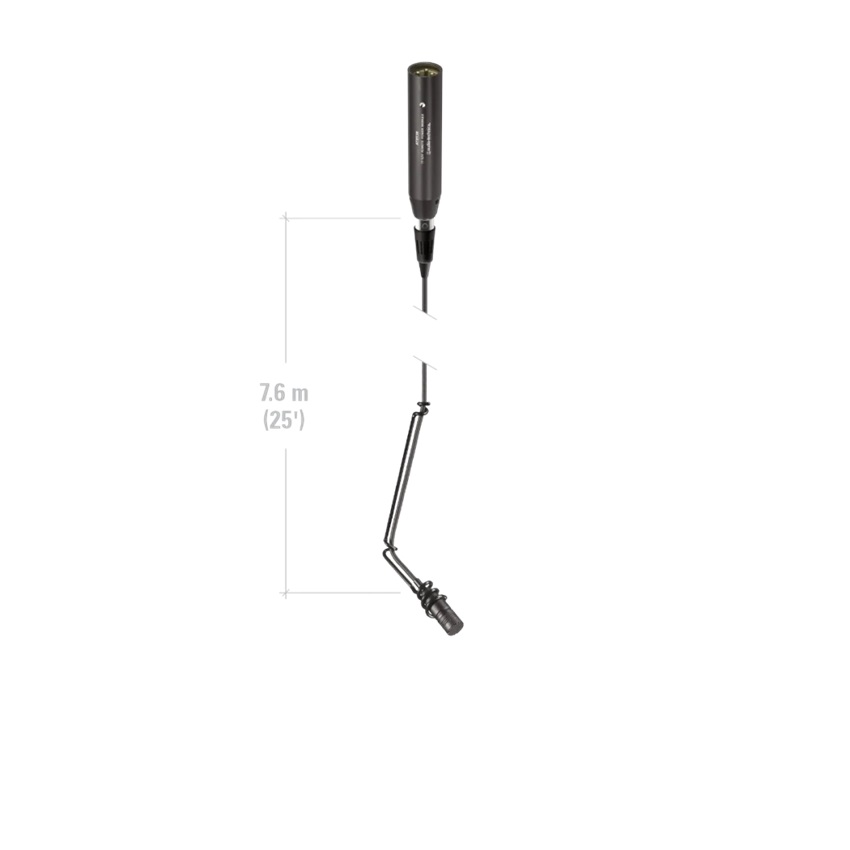

- Cable: 25.0' (7.6 m) long (permanently attached to microphone), 0.13 (3.2 mm) diameter, 2 conductor shielded cable with TA3F-type connector
- OPTIONAL INTERCHANGEABLE ELEMENTS:
- UE-H hypercardioid (100,);
- UE-O omnidirectional (360,);
- UE-UL UniLine, (90,)
Physical & Dimensions
- Microphone:
- Length: 34mm
- Diameter: 12.2mm
- Weight: 14g
- Power Module:
- Length: 92.9mm
- Diameter: 18.9mm
- Weight: 81g
