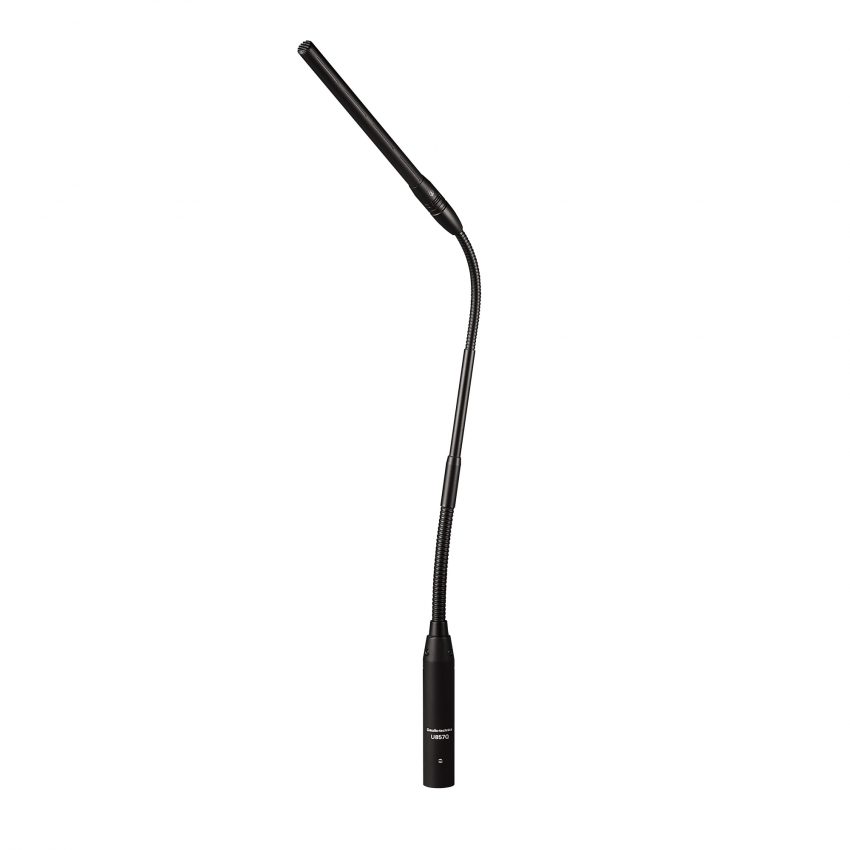

Ideal for conference centers, boardrooms, courtrooms, houses of worship, and other installed applications, the U857Q is designed to plug directly into a panel- or desk-mounted XLRF-type connector. Offering unsurpassed immunity from radio frequency interference thanks to Audio-Technica’s UniGuard® innovations, this quick-mount microphone features an ultra-flexible, small-diameter gooseneck and accepts interchangeable elements – omnidirectional (360°), cardioid (120°), hypercardioid (100°), and UniLine® (90°) – available separately. Equipped with self-contained electronics, the phantom-powered microphone also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise.
Available configurations:
U857Q: cardioid polar pattern (120° acceptance angle); 14.37" (365.0 mm) long.
U857QL: cardioid polar pattern (120° acceptance angle); 18.94" (481.0 mm) long.
U857QU: UniLine polar pattern (90° acceptance angle); 19.17" (487.0 mm) long.
U857QLU: UniLine polar pattern (90° acceptance angle); 23.74" (603.0 mm) long.
- Designed for high-quality sound reinforcement, professional recording and broadcasting
- Superior off-axis rejection for maximum gain before feedback
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no “memory” permits quick positioning into desired shape
- UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Self-contained electronics eliminate need for external power module
- Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
- Two-stage foam windscreen yields dramatically improved resistance to P-pops and other breath blasts
- Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector

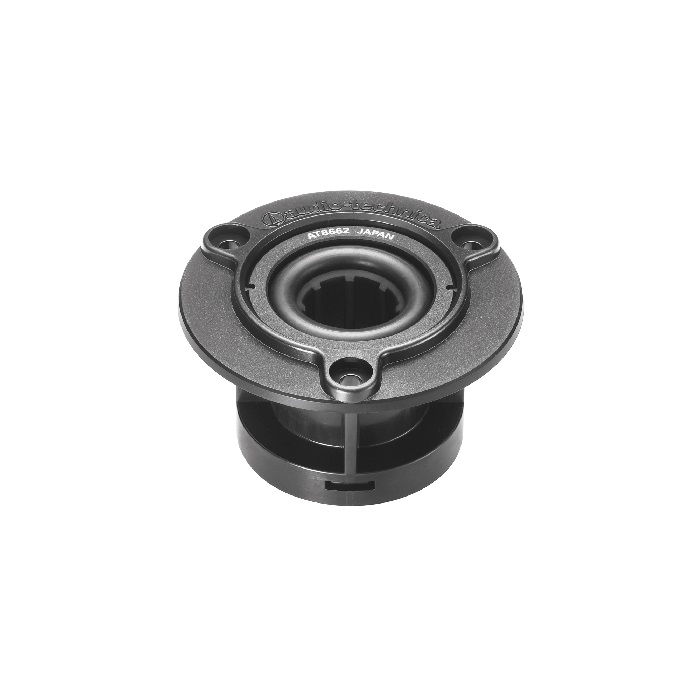

- Included shock mount attenuates noise, shock and vibration transmitted through the mounting surface
| Microphones |
|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
|---|
| Frequency Response | 30 - 20,000 Hz |
|---|
| Open Circuit Sensitivity | -39 dB (11.2 mV) re 1V at 1 Pa |
|---|
| Weight | 144 g |
|---|
| Dimensions | 14.37" (365.0 mm) long, 0.48" (12.2 mm) head diameter, 0.74" (18.9 mm) base diameter |
|---|
| Output Connector | Integral 3-pin XLRM-type |
|---|
| Optional Interchangeable Elements | UE-C cardioid (120°); UE-H hypercardioid (100°); UE-O omnidirectional (360°) |
|---|
| Accessories Included | AT8153 two-stage foam windscreen; AT8662 shock mount |
|---|
