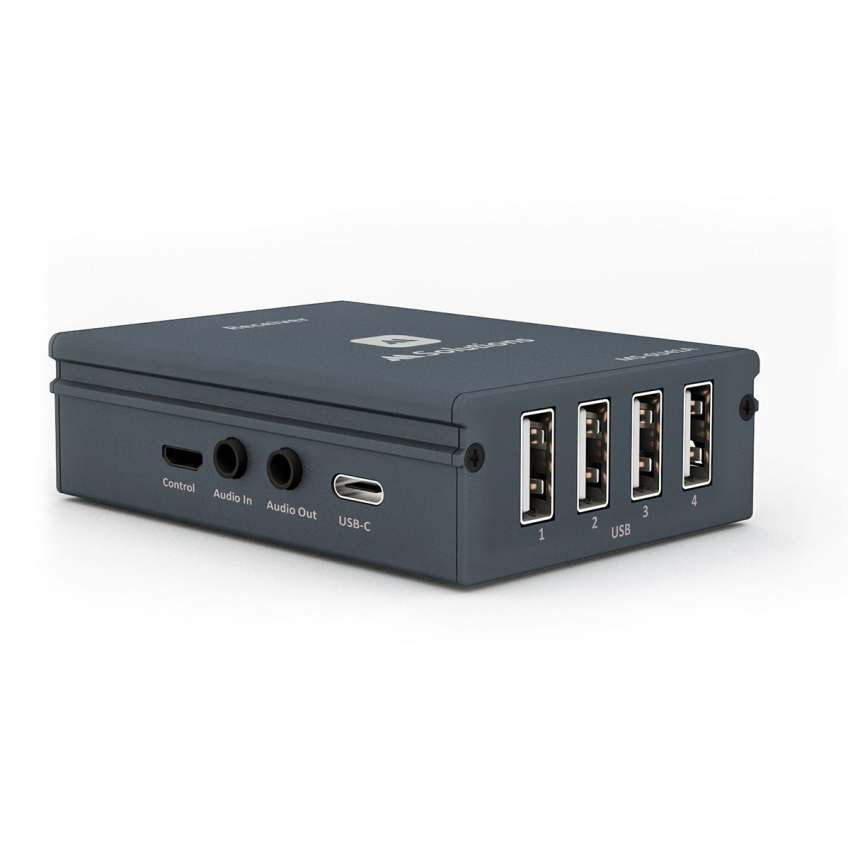

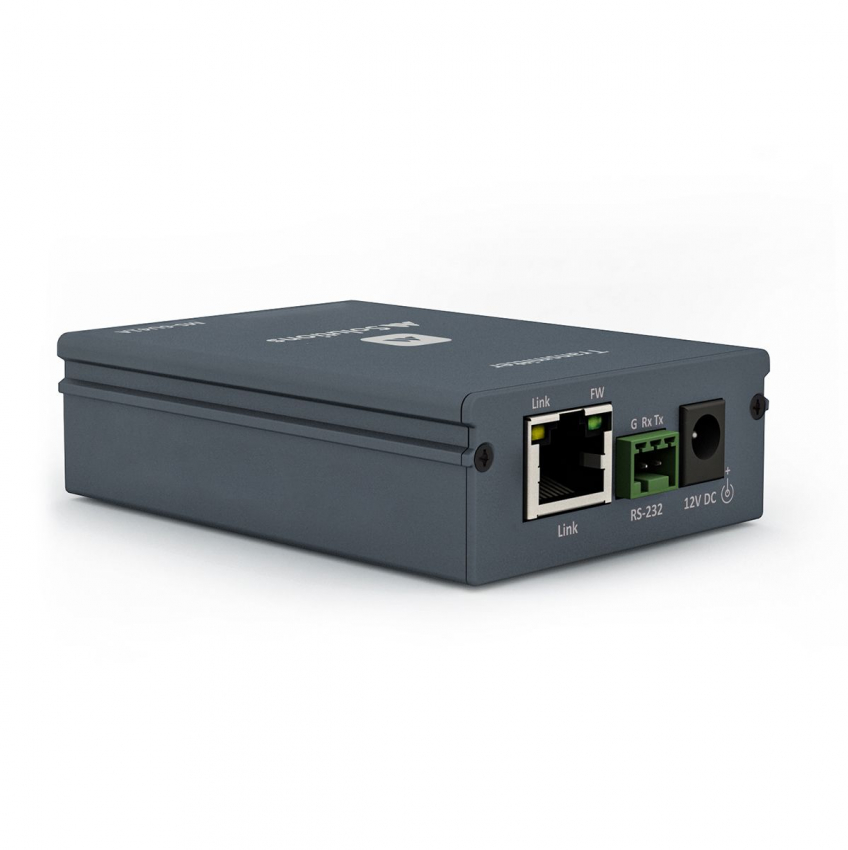

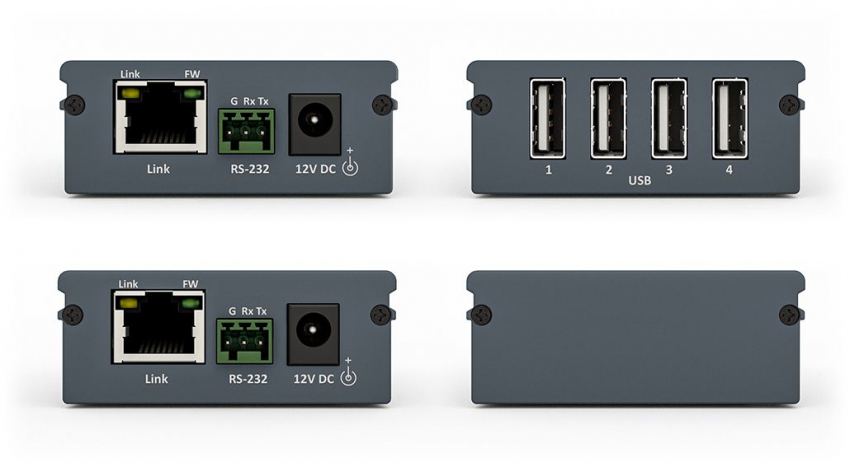

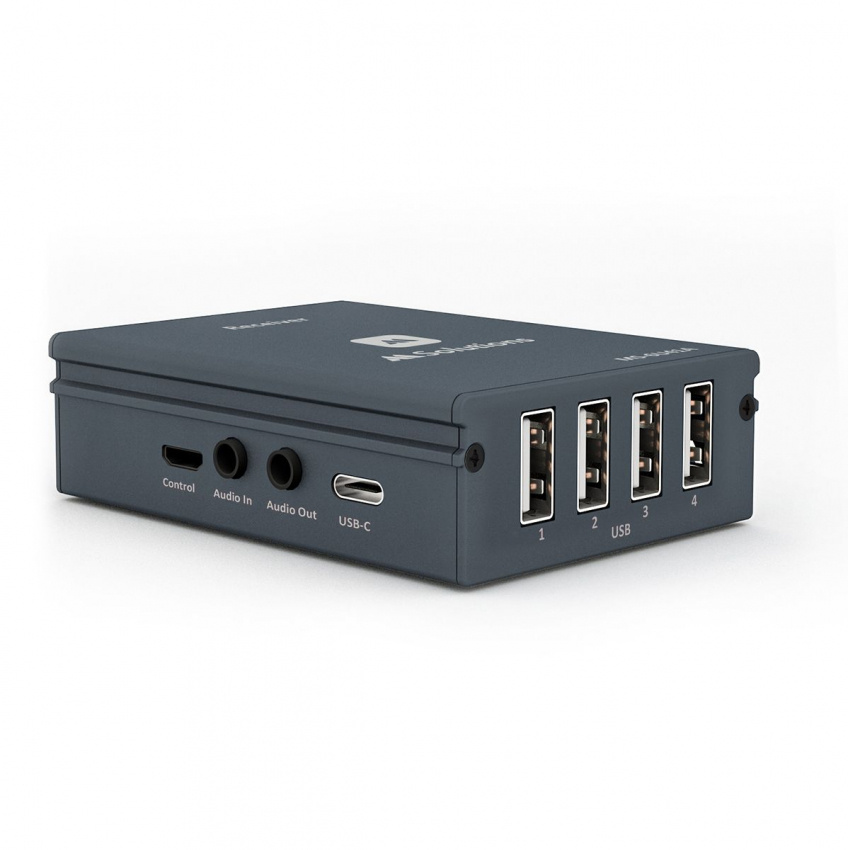

The MSolutions MS-6U41A is a high performance USB extender allowing for a single USB-C data, and 4x USB3.0 compatible devices to be extended to distances of up to 100m over a single CATx cable infrastructure. The extender features a bi-directional analogue audio pass-through channel allowing for 2ch audio to be run from TX to RX, or RX to TX. RS-232 serial pass-through and bi-directional 12V PoC (Power over Cable) expand the capabilities of this extender kit for a variety of commercial uses including USB peripheral extension, and remote connectivity for USB VC equipment.

• Uncompressed extension of USB data and analogue audio up to 100m over single CAT
• 1x USB-C channel for data connectivity of USB-C devices across the link
• 4x USB2.0 channels with USB3.0 compatibility for KVM connectivity of multiple USB devices across the link – max 320Mbps data rate pass-through (combined)
• Flexible USB extension for: USB3.0 cameras, touch screens, smart boards, hard drivers, games controllers, USB audio devices, printers, scanners and HID’s (mouse or keyboard)
• Supports transparent USB2.0 signals and true plug-and-play (no software ot drivers required)
• In-built analogue unbalanced audio extender allowing 2ch stereo audio to be sent between TX and RX, or RX and TX
• Bi-directional RS-232 serial pass through
• Bi-directional 12V PoC (Power over Cable)
