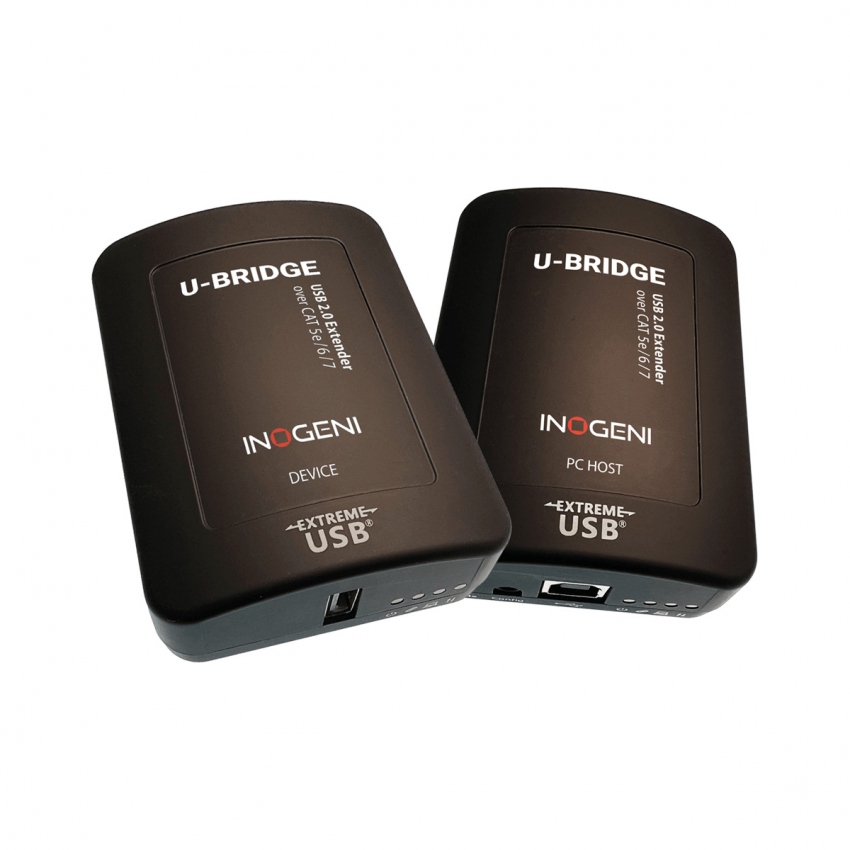

Inogeni U-BRIDGE USB 2.0 EXTENDERS
The U-BRIDGE USB 2.0 Extender provides plug-and-play convenience, eliminating the need for complex software installations. It effortlessly connects USB devices to the videoconferencing system, ensuring a seamless setup process.
The extender can achieve high-speed connections up to 100 meters (330 feet) over a single CAT 5e/6/7 cable. This means you have the flexibility to arrange your videoconference room according to your specific needs, without worrying about distance limitations.
Extensive compatibility and peace of mind: The U-BRIDGE USB 2.0 Extender is designed to work flawlessly with a broad range of USB cameras, including renowned brands, such as Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, and Marshall. In addition, it seamlessly integrates with popular videoconferencing systems like Cisco by Webex, Poly, Logitech, and room PCs from Lenovo, Logitech, or Crestron. With its reliable performance and compatibility, the U-BRIDGE USB 2.0 extender offers peace of mind for AV professionals seeking a hassle-free installation experience.
Features:
The U-BRIDGE offers versatility and reliability for USB 2.0 extensions of up to 100 m (330 ft.). The U-BRIDGE enables users to extend beyond the standard 5 m cable limit for USB peripheral devices.
Designed for extension of USB 2.0 devices and systems
DEVICES: USB 2.0 devices
• Cameras, whiteboards, microphones, audio devices, and any other USB devices (hard drives, flash drives or keyboards)
PC HOST: Videoconference systems:
• Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs or Room PC from Lenovo, Poly, Crestron, Cisco, Logitech, Q-SYS or Barco
INOGENI devices before or after the U-BRIDGE:
• Mixers and switchers: SHARE2, SHARE2U, CAM300, CAM230, TOGGLE
• Converters: 4KX-PLUS, 4KXUSB3, 4K2USB3, HD2USB3 and the U-CAM

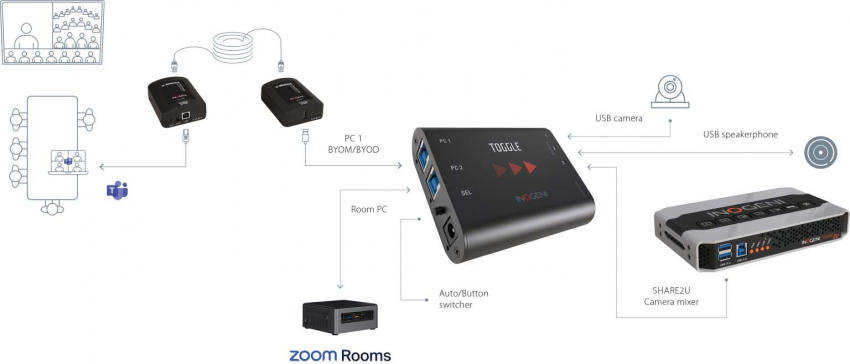

Extend BYOM to the laptop with the TOGGLE and the U-BRIDGE.
• Supports all USB 2.0/1.1 devices of up to 480 Mbps
• Flexible power: Connect the power adapter to either the PC Host or Device
• Supplies up to 1 Amp to USB port
• Mass storage acceleration for USB 2.0 device bulk transfers
Included:
• 1x USB 2.0 cable and 1x AC power adapter with International powers cords
Extreme USB®suite of features:
• Transparent USB extension
• True plug and play; no software drivers required
• Works with all major operating systems: Windows®, macOSTM, and Linux®
• Easy to install with two mounting slots on each side for use with a cable ties/zap straps
• Two-year warranty
How it works

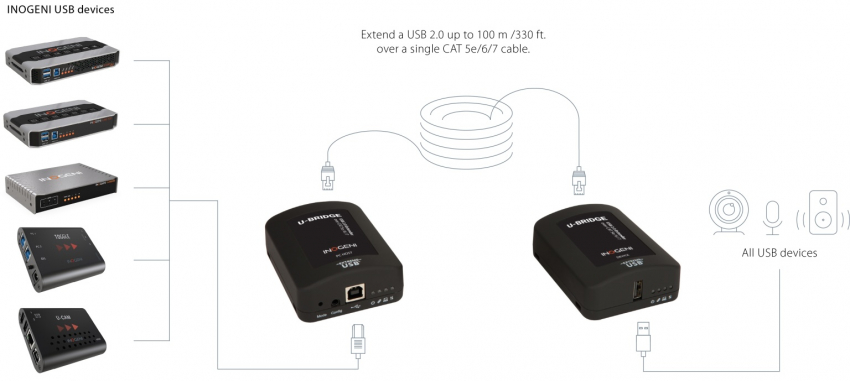

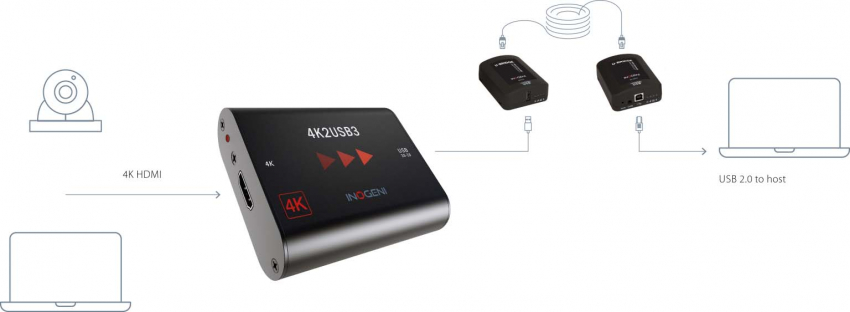

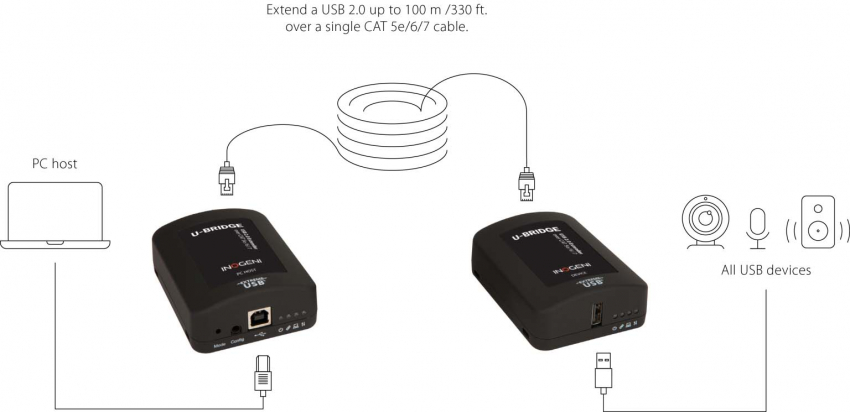

Extend your USB 2.0 camera to any INOGENI USB input, CODEC, or videoconferencing system. Use an INOGENI converter to extend your HDMI camera with the U-BRIDGE.
By connecting your HDMI camera to any INOGENI mixer or converter (HDMI to USB converter), you can effortlessly transmit high-quality video signals in MJPEG format, along with audio, to your computer or PC-based videoconferencing setup in any room and up to 100 m/330 ft. long.
Main feature
Description
The U-BRIDGE USB 2.0 extender enables high-speed USB 2.0 connections of up to 100 m/330 ft. over a single CAT 5e/6/7 cable.
Range
Range
Direct connect up to 100 m/330 ft. over CAT 5e/6/7
USB
Speeds
USB 2.0: up to 480 Mbps
USB 1.1: up to 12 Mbps

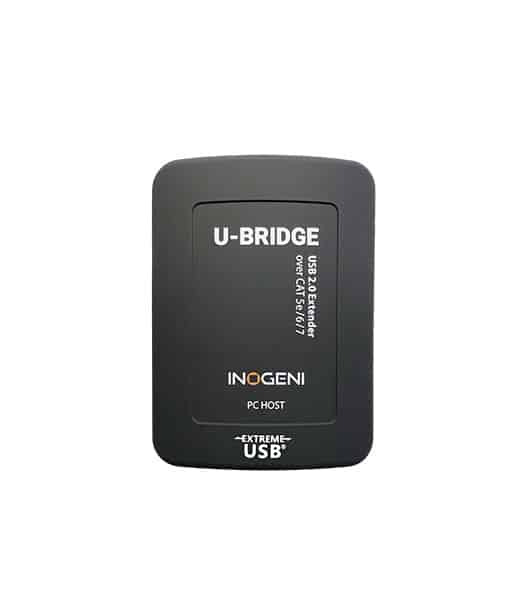

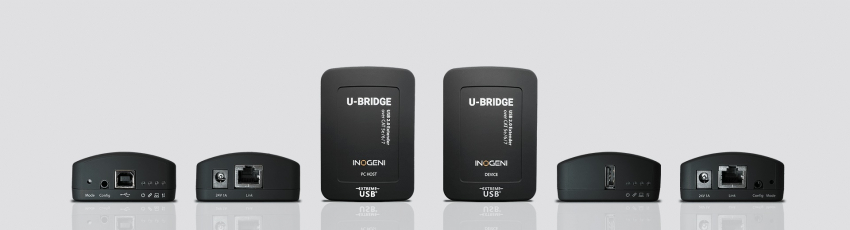

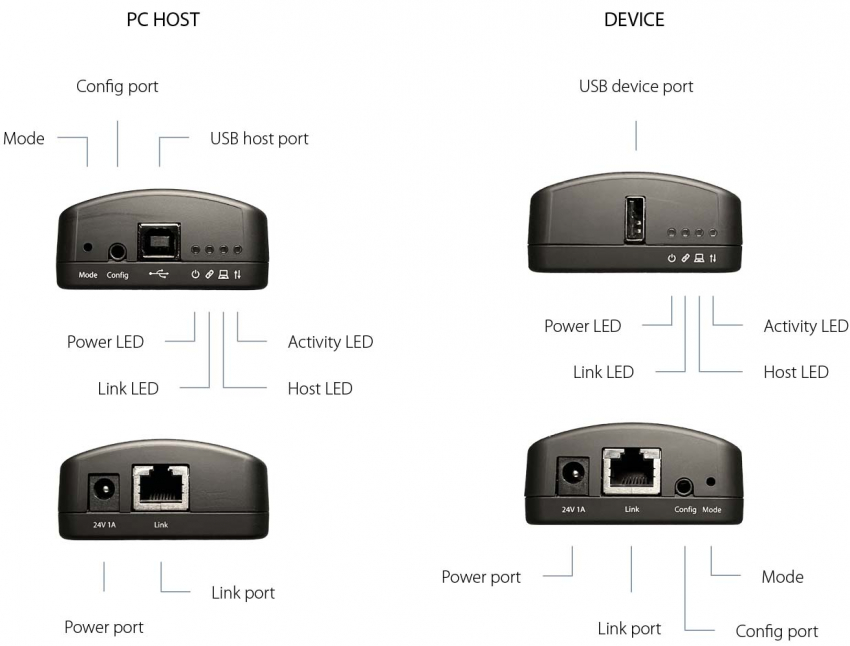

PC Host extender
USB connector
1x USB Type B receptacle
Link connector
1x RJ45
Dimensions (W x L x H)
65.0 mm x 87.5 mm x 30.0 mm
2.6” x 3.4” x 1.2”
Weight
81 g (0.18 lb)
Mounting
Slots for cable ties
Enclosure material
Black ABS with rubberized coating
Device extender
USB connector
1x USB Type A receptacle
Link connector
1x RJ45
Available current
Up to 1A to USB port
Dimensions (W x L x H)
65.0 mm x 87.5 mm x 30.0 mm
2.6” x 3.4” x 1.2”
Weight
89 g (0.20 lb)
Mounting
Slots for cable ties
Enclosure material
Black ABS with rubberized coating
Physical details
Package dimensions (W x L x H)
24.5 cm x 19.7 cm x 7.9 cm
9.7” x 7.5” x 2.8”
Power supply
100-240V AC input, 24V 1A DC output.
Apply at either PC Host or Device modules.
Package weight
1087 g (2.4 lb)
Package content
1x PC Host extender module
1x Device extender module
1x USB 2.0 cable
1x Quick Start Guide
1x power supply 100-240V AC input, 24V 1A DC output
International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)
Operating temperature
0° to 50° C
32° to 122° F
Storage temperature
-20° to 70° C
-4° to 158° F
Operating humidity
20% to 80% relative humidity, non-condensing
Storage humidity
10% to 90% relative humidity, non-condensing
Informations
Code UPC
051497302832
Origin
Designed in Canada and made in China
Warranty
2 years
Certifications
Certifications
EMC: FCC (Class A), CE (Class A)
Environmental: RoHS2, REACH,
Conflict Minerals
Safety: Flammability V-0
IEC62368-1
RCM

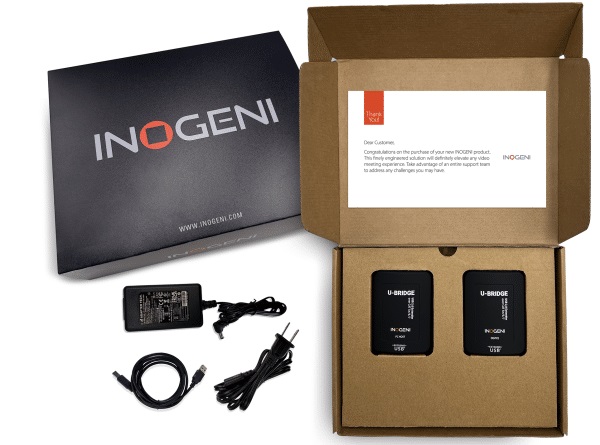

What is in the box
The U-BRIDGE USB 2.0 extender system with flexible power includes:
- 1x PC HOST extender module
- 1x DEVICE extender module
- 1x USB 2.0 cable
- 1x Quick Start Guide
- 1x power supply: 100-240V AC input, 24V 1A DC output
- International power adapter with country-specific
cord (North America, EU, UK, Australia/NZ, or Japan)
