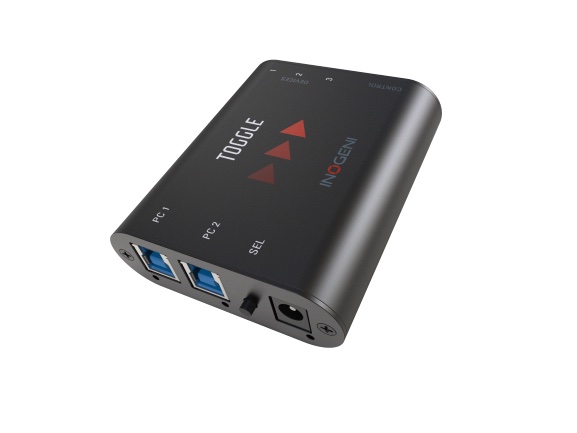

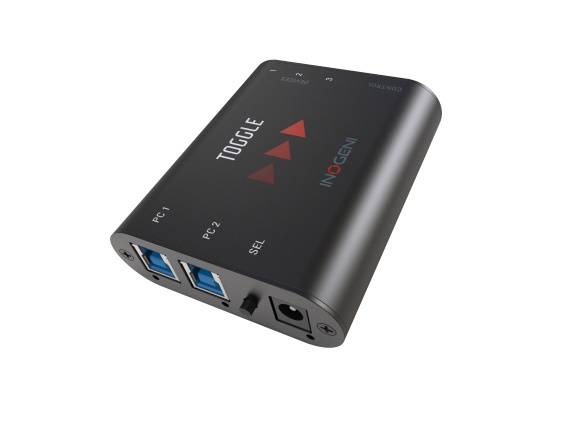

TOGGLE USB Switcher connect to three USB 3.0 devices and can switch them between two hosts. It will switch automatically to a laptop when it is connected, and revert back to the room pc when disconnected. It can also be controlled remotely by RS-232 or GPI.
- Your perfect partner for your BYOD or BYOM setup
- Three USB 3.0 device ports
- Switch between two USB 3.0 hosts
- Can automatically switch to the new host
- Compatible to USB 2.0
- Automatic, manual or remote control
- RS-232 control
- GPI contact-closure control
- Rugged full-metal enclosure
- External power supply can provide power to the USB 3.0 devices
- Two USB 3.0 cables is included
- TAA compliant
- Designed and made in CANADA
| USB host ports | 2 x Type-B USB 3.0/2.0 compatible. |
| USB device ports | 3 x Type-A USB 3.0/2.0 compatible. |
| Serial interface | Baud rate: 9600 For control purpose. See Serial communication protocol section for more details. |
| Push-button | Physical switch to select host. |
| GPIN | Contact-closure control. Controlled by open-drain IO (short to ground) or driven IO. Supported voltage range: 0V to +12V max. |
| Device current limit | 1.8A shared current limit for all 3 x USB device ports. You can monitor current consumption through RS232 and our Control App. |

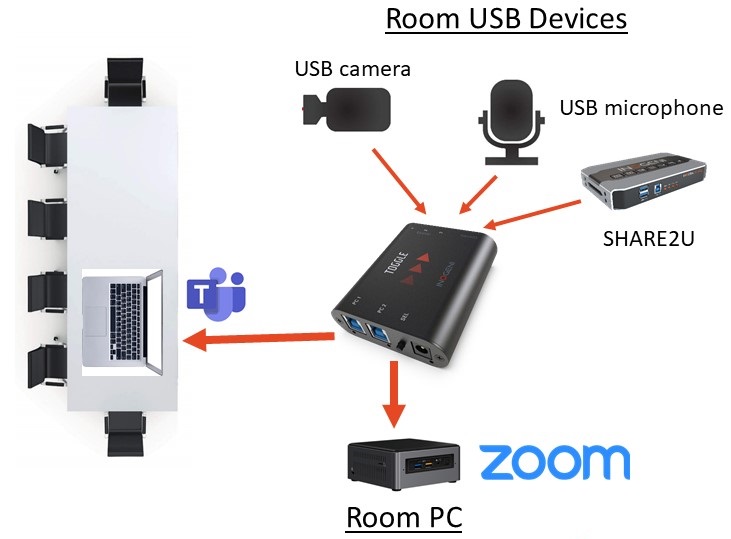

How it works
The TOGGLE USB 3.0 professional switcher can connect to three USB 3.0 devices and switch them between two hosts. It will automatically switch to a laptop when it is connected, and revert back to the conference room’s computer when disconnected. It can also be controlled remotely by RS-232 or GPI.
Main feature
Description
BYOD/BYOM Solution.
TOGGLE USB Switcher connect to three USB 3.0 devices and can switch them between two hosts. It will switch automatically to a laptop when it is connected, and revert back to the room pc when disconnected. It can also be controlled remotely by RS-232 or GPI.
Video input

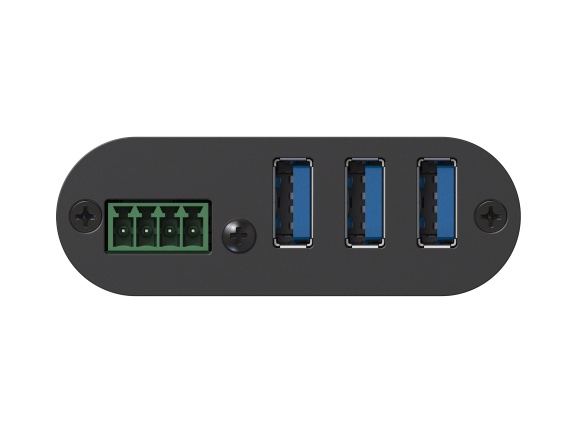

USB device ports Connector & Video Resolutions
3 x Type-A USB 3.0/2.0 compatible

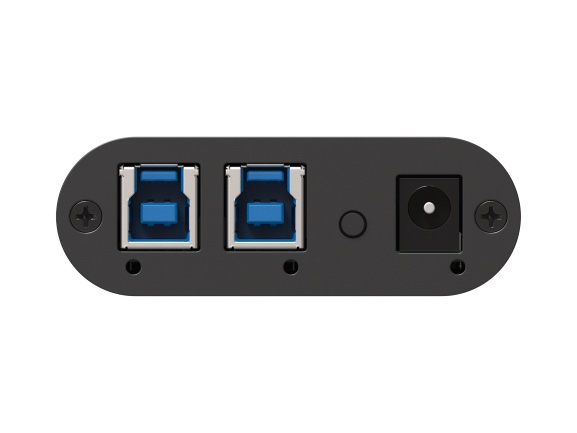

USB host ports Connector & Video Resolutions
2 x Type-B USB 3.0/2.0 compatible
Control
Software
Automatic, manual or remote control. Current configuration is saved onboard.
Device control
RS-232 control
GPI control
Compatibility
Barco ClickShare compatible
Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
Serial interface
Baud rate: 9600 bps For control purpose. See Serial communication protocol section for more details.
Push-button
Physical switch to select host.
GPIN
Contact-closure control. Controlled by open-drain IO (short to ground) or driven IO. Supported voltage range: 0V to +12V max. Voltage threshold is 2.3V.
Device current limit
1.8A shared current limit for all 3 x USB device ports. You can monitor current consumption through RS-232 and our Control App.
Software
Upgrade
Field upgradable through our INOGENI Control App.
Physical details
Dimensions (W x L x H)
7.0cm x 8.3cm x 2.3cm
2.75” x 3.25” x 0.9”
Power supply
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
Weight
113g (0.25 lb)
Package content
2x 3 ft USB 3.0 cables (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
40232609022
Origin
Canada
Warranty
2 years
Certifications
Certifications
FCC, CE, RoHS, IEC62368, SoV, RCM, KC, NOM
TAA-compliant
Yes

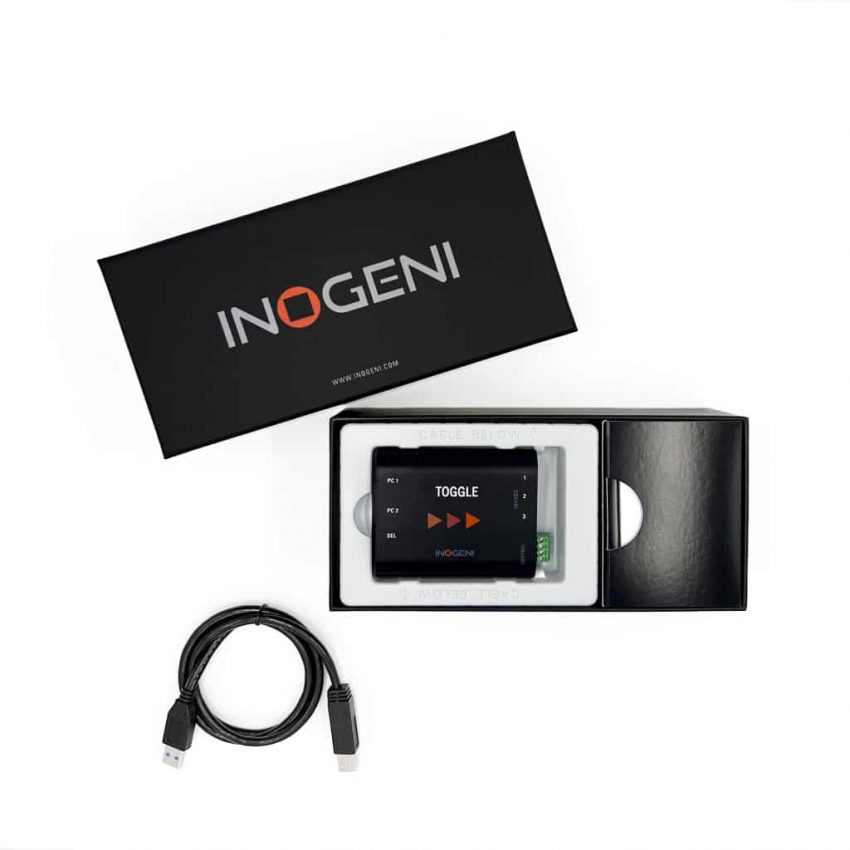

What’s in the box
- 2x 3 ft USB 3.0 cables (Type-A to Type-B)
- 1x RS-232 terminal block adapter
- 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
- International adapters included in the box (AUS, EUR, UK and US)
