Styrbar USB + HDMI - Kameraväxel för videomöten!

Varumärke:Inogeni
Artnr: INO-CAM300

Egenskaper

USB 3.0 + HDMI Kameraväxel

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

  • Selects between USB and HDMI sources
  • Outputs to a USB 3.0 and HDMI connections
  • Control over pushbuttons, LAN and RS-232


    Multiple Cameras in your online meetings and webcast

    Online collaboration is already a communication norm – like email & cell phones. The novelty and many of the bugs are gone. It’s a valid tool. Audiences already expect a higher production value than a one camera talking head. You can achieve this with software, a multiple input computer and an operator or you can look at Inogeni.

    With the Inogeni CAM series of multiple cameras selector, your meeting can be as spontaneous as you want it to be. The CAM products let you select one of four sources from the buttons or remotely. With CAM300 you can present and narrate a PowerPoint program, cut between images of one speaker and a group, have one camera focused on an interviewer and the interviewee, present and explain a spreadsheet or a digitized radiograph, etc. With practice you can make one camera full screen and change what the other camera or source is looking at while it is off screen.

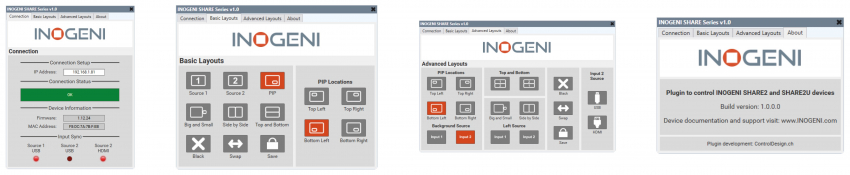

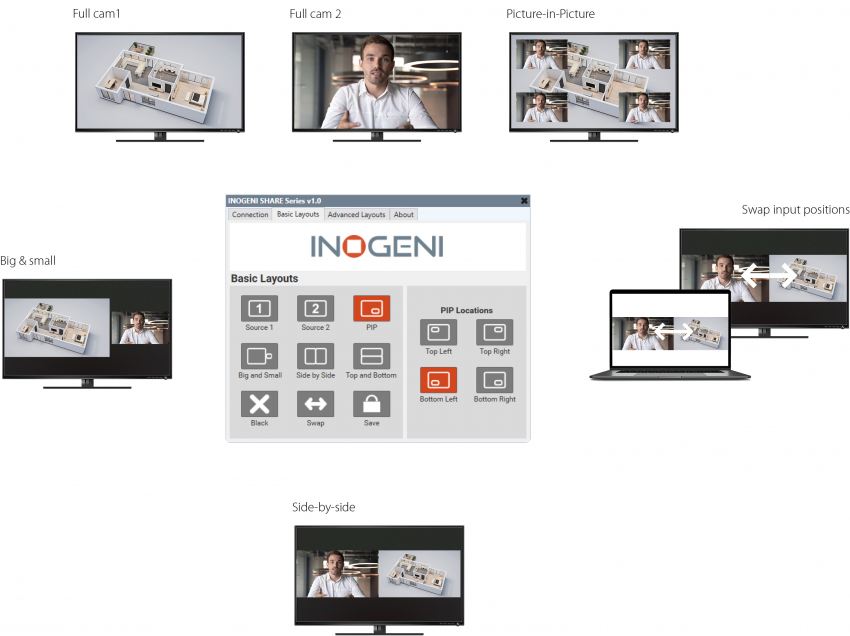

    The SHARE series extend the flexibility of the CAM selectors by adding sources mixing and combining effects for a more efficient online collaboration.

    Flexible installation with local and remote control

    In addition to the front buttons, you can control them via serial and Ethernet as well. In other words, you can use them with Crestron and AMX controlled room or at a remote site.

    Extreme compatibility with all applications

    Technically, the CAM series integrates a scaler and frame buffer to ensure a smooth glitch-free switch, so your collaboration program sees a single continuous data stream. Tested apps include Skype®, Quicklaunch®, Hangouts®, ZOOM®, Vidyo®, Livecast®, vMix®, etc. The best way to test your application is that if it works with a single camera, you can have more cameras with Inogeni CAM products.

    For systems installers and designers contact us for pricing.



    How it works

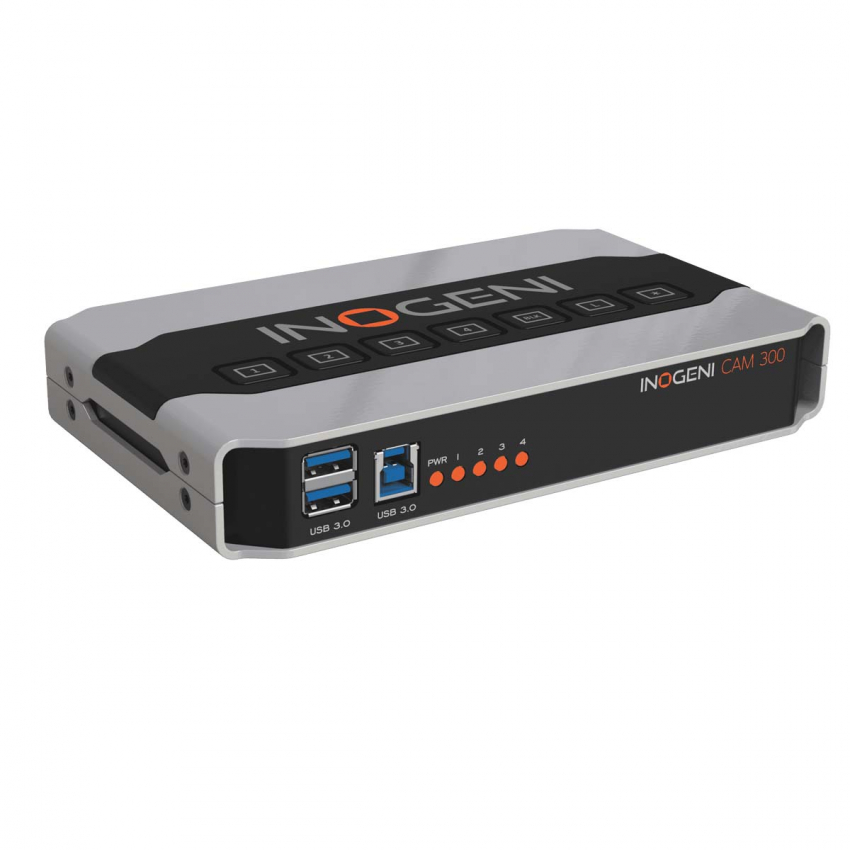

    The CAM300 4-in-1 pro AV camera selector offers maximum versatility for both local and remote control. It is the best choice for standalone applications because it includes an HDMI output to monitor the selection. You can also use it with INOGENI’s SHARE2 or SHARE2U camera mixers.

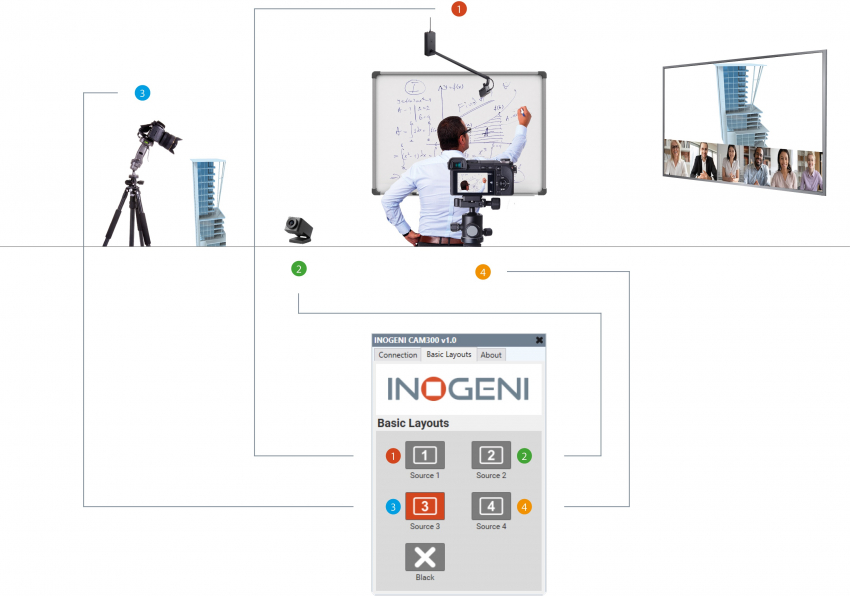

    Easy push-button to switch easily up to 4 video cameras.



    Main feature

    4:1 Camera selector

    4:1 Camera selector
    (Smooth video switch)

    4 inputs: 2x HDMI & 2x USB 2.0
    2 outputs: HDMI 1080p60 & USB 3.0 output

    Video input

    #1 Connector & video resolutions

    1 x USB camera 2.0
    MJPEG or H264 (*)
    Depends on the camera specifications

    Compatible USB cameras

    #2 Connector & video resolutions

    1 x USB camera 2.0
    MJPEG or H264 (*)
    Depends on the camera specifications

    Compatible USB cameras

    #3 Connector & Video Resolutions

    1x HDMI
    1080p60, 1080p30, 720p60 and 480p60
    (1080p60 supported for S/N greater than KC2111xxx and KCM111xxx)

    #4 Connector & video resolutions

    1x HDMI
    1080p60, 1080p30, 720p60 and 480p60
    (1080p60 supported for S/N greater than KC2111xxx and KCM111xxx)

    Notes for MJPEG and H264

    * USB 2.0 or USB 3.0 cameras that only support uncompressed video will not work properly. For better performance, use USB 3.0 or 2.0 cameras that support MJPEG or H264 CODECs.

    * Only 1x 1920x1080p30 MJPEG and 1x 1280x720p30 MJPEG video resolutions can be captured simultaneously, this is a hardware limitation.

    Color space

    HDMI : RGB, YCbCr 4:4:4 and 4:2:2

    Video output

    HDMI

    1x HDMI up to 1080p60
    (One mixed video stream)

    USB

    1x USB 3.0 uncompressed up to 1080p60
    (One mixed video stream)

    USB - Color Space ou CODEC

    USB 3.0: YCbCr (YUY2) 4:2:2 8-bit.
    USB 2.0: MJPEG

    USB - Video scaler

    Automatic hardware-based

    USB - Color space conversion

    Automatic hardware-based

    USB - Sampling conversion

    Automatic hardware-based

    USB - Frame rate conversion

    Automatic hardware-based

    Audio

    Digital audio I/O

    HDMI embedded PCM
    USB camera audio
    USB 3.0 PCM stereo, audio follow input

    Control

    Control options

    Front buttons
    RS-232
    LAN
    USB

    IP interface

    DHCP not supported.

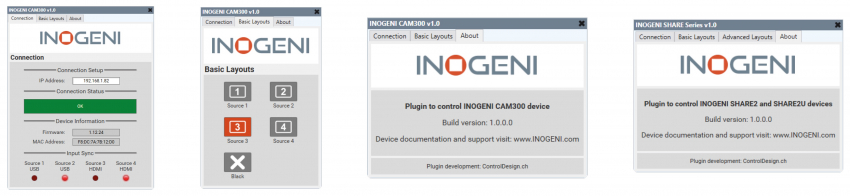

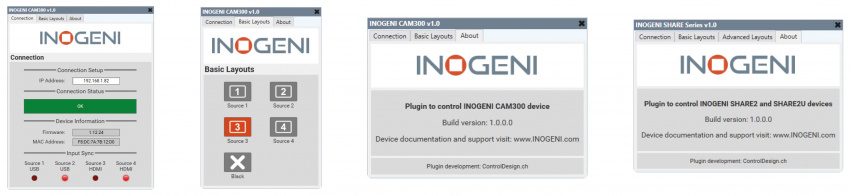

    Static IP address configuration through our Control App

    USB Port

    USB expansion port

    Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.

    Compatibility

    Barco ClickShare compatible

    Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

    Operating systems

    NO driver installation necessary!

    Windows 7 and above (32/64-bit)
    macOS 10.10 and above
    Linux (kernel v2.6.38)

    Minimum host requirements

    USB 2.0 port – We recommend USB 3.0 for uncompressed video
    4GB RAM
    Intel Core i5 or equivalent
    Graphic card with dedicated memory

    Motherboard & laptop

    Compatible with all processors and chipsets. Intel, Renesas, ASMedia and Fresco Logic.

    Supported cameras

    Cameras with an HDMI, DVI or USB 2.0 output

    Software Compatibility

    UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.
    Compatible to: Teams, Zoom, Webex, Google Meet, etc.

    See more compatible applications here

    Video switch speed

    Video switch speed

    Less than 0.2 second for switching between USB inputs.
    Less than 0.2 second for switching between HDMI inputs with same video resolution.
    Less than 0.2 second for switching between USB input and “active” HDMI input and vice-versa.
    Up to 2 seconds switching between HDMI inputs if video resolutions are different.

    *Active HDMI input is the last selected HDMI input.

    Physical details

    Dimensions (W x L x H)

    18.5 cm x 11.0 cm x 3.0 cm
    7.25” x 4.25” x 1.25”

    Power supply

    12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

    Weight

    469 g (1.03 lb)

    Package content

    1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
    1x RS-232 terminal block adapter
    1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
    International adapters included in the box (AUS, EUR, UK and US)

    Operating temperature

    0° to 45° C
    32° to 113° F

    Storage temperature

    -40° to 105° C
    -40° to 221° F

    Relative humidity

    0% to 90% non-condensing

    Informations

    UPC code

    40232633836

    Origin

    Canada

    Warranty

    2 years

    Certifications

    HDCP-compliant

    The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

    Certifications

    FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP, NOM

    TAA-compliant

    Yes

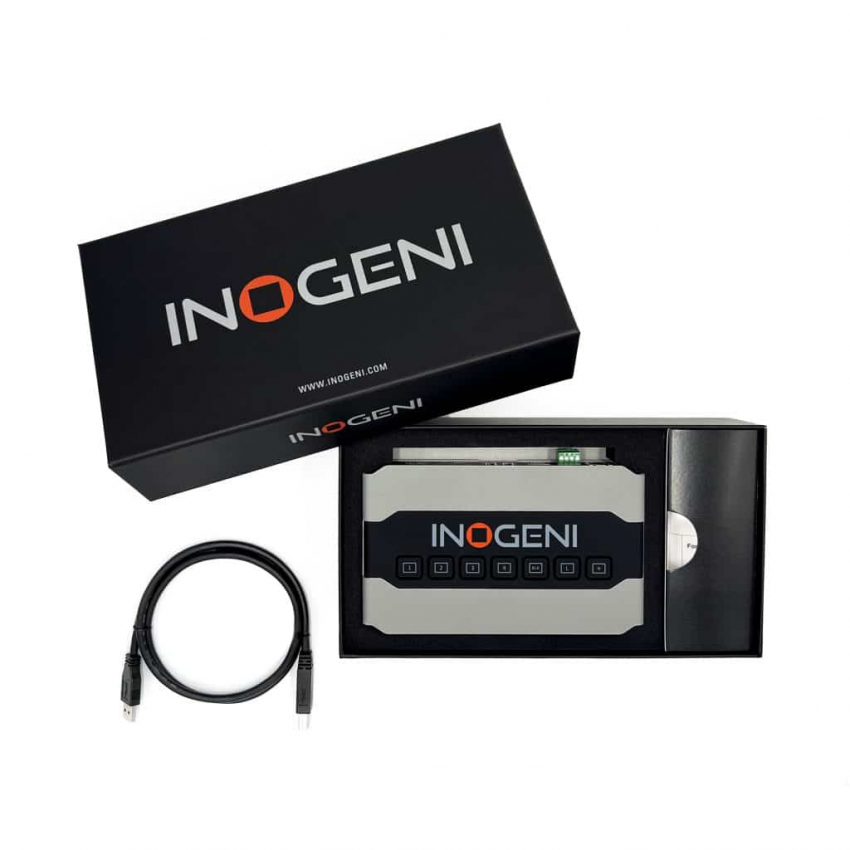

    What’s in the box

    • 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
    • 1x RS-232 terminal block adapter
    • 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
      • International adapters included in the box (AUS, EUR, UK and US)
