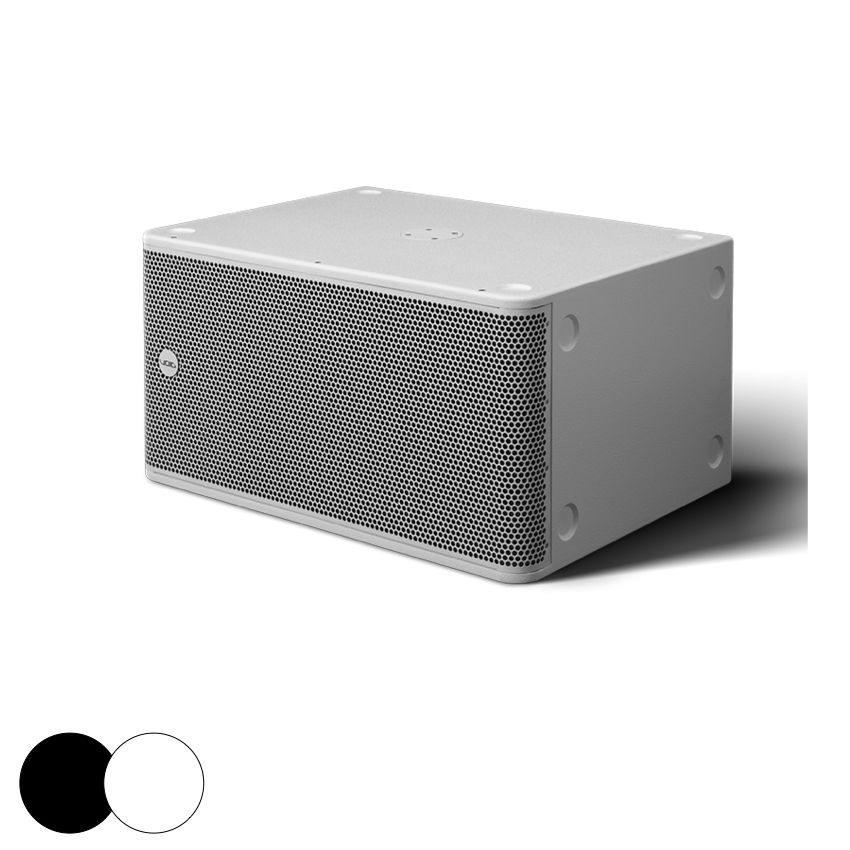

Operating as a reflex-loaded, dual 12” compact low frequency loudspeaker, with a frequency response of 34 Hz – 160 Hz ±3 dB. Featuring two robust 12” high excursion transducers with 4” voice coils as well as a recessed rear connector panel.
- Reflex-loaded dual 12” low frequency loudspeaker
- Tough high excursion transducers with 4" voice coils
- Dual speakON™ and Phoenix connectors with link throughs for quick and reliable hook ups
- Recessed rear connector panel that allows the enclosure to be placed against a rear wall
- Yoke bracket positions for wall or ceiling mounting
- M20 top hat fixture included to allow for use in touring applications
- Sturdy enclosure made entirely from multi-laminate birch plywood
- Frequency response: 34 Hz - 160 Hz ±3 dB
- Efficiency1: 99 dB 1W/1m
- Crossover points: 80 Hz - 160 Hz active
- Nominal impedance: 4 Ω
- Power handling2: 1200 W AES
- Maximum output3: 129 dB cont, 135 dB peak
- Driver configuration: 2 x 12” LF
- Connectors: 1 x Phoenix with link out and 1 x speakON™ with link out
- Weight: 47.5 kg (104.7 lbs)
- Enclosure: 15 mm birch plywood
- Mounting: Optional M20 top hat, Yoke bracket positions
- Finish: Textured polyurethane
- Grille: Perforated steel with foam filter
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
