PRO Encoder (2 Kanaler) i gruppen AV-Teknik / AV-över-IP / Atlona OmniStream hos Audiovision AB (AT-OMNI-112)
PRO Encoder (2 Kanaler)
PRO Encoder (2 Kanaler)

PRO Encoder (2 Kanaler)

4K Scaler, PoE, HDR, Dolby Vision, Videovägg & Redundans

Varumärke:Atlona
Artnr: AT-OMNI-112

Egenskaper

Ingångar HDMI: 2 st
Latency: 8 ms
Ljud: AES67
PoE: Ja
Chroma Subsampling: 4:4:4
Max. upplösning: 3840x2160@60Hz , 4096x2160@60Hz
HDR: Ja
RS-232: Ja
IR: Ja
AMS: Ja
Vikt: 0.7 Kg
Yttermått bredd: 208 mm
Yttermått djup: 112 mm
Yttermått höjd: 34 mm

PRO Encoder (2 Kanaler)

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

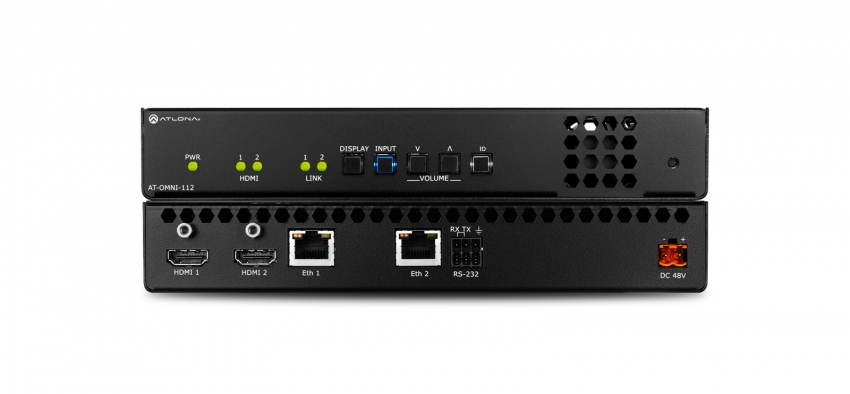

The Atlona OmniStream™ 112 (AT-OMNI-112) is a networked AV encoder with two independent channels of encoding for two HDMI sources up to UHD @ 60 Hz and HDR, plus embedded audio and RS-232 or IR control pass-through. It is part of the OmniStream Pro Series, designed for high performance, scalable distribution of AV over Gigabit Ethernet in commercial applications. The OmniStream 112 is HDCP 2.2 compliant and ideal for the latest as well as emerging UHD and HDR sources. It features visually lossless compression for critical-quality video and graphics applications, with extremely low, sub-frame latency from encode to decode. The OmniStream 112 also includes selectable AES-128 encryption, and SMPTE 2042 forward error correction for robust AV distribution spanning multiple networks. This dual-channel encoder is housed in a half-width rack enclosure and is ideal for high-density rack installations. With two Ethernet ports, the OmniStream 112 can also deliver duplicate AV streams to two networks for full system redundancy in mission-critical applications.

Easy to Configure, Simple to Manage
OmniStream AV over IP systems are remarkably easy to set up and manage – whether for a meeting room, residence, divisible room, or an entire university campus. Atlona Management System (AMS) 2.0 features automatic network device discovery, plus an intuitive web-based GUI that lets you configure virtual routing for AV, control, and data over the network – just as easily as you would with conventional AV matrix switching. AMS also streamlines and simplifies management of OmniStream systems through continuous system monitoring, notifications and alerts, event logging, multi-device configuration and backup, automated firmware updates, remote device control, and more.

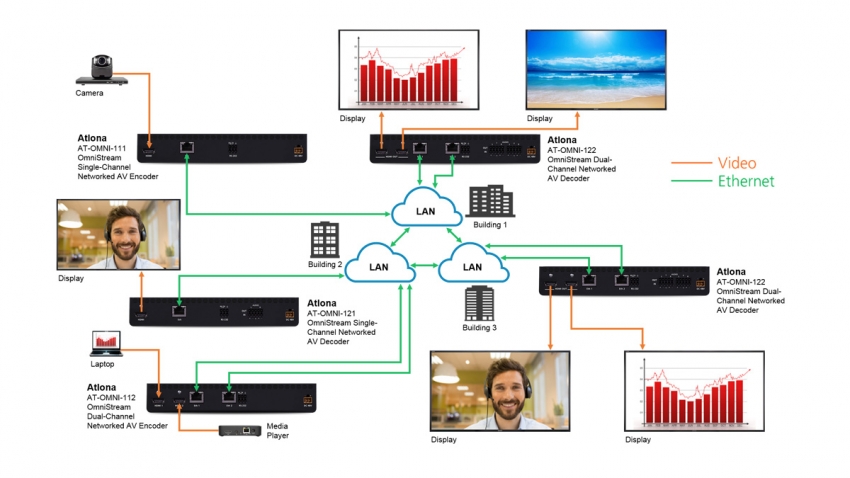

Networked AV Redundancy
The OmniStream 112 can provide networked AV system redundancy in conjunction with an OmniStream 122 dual-channel AV decoder. It can deliver two simultaneous encoded streams from an HDMI source, with the two channels connected into primary and redundant networks, and an OmniStream 122 configured to decode both streams simultaneously. The OmniStream 122 can detect the loss of a physical network connection, or disruption in an AV stream, and then automatically switch over to the secondary network for continuous system operation.

Product Compatibility
The OmniStream 112 is compatible with the OmniStream 121 and OmniStream 122 decoders.
