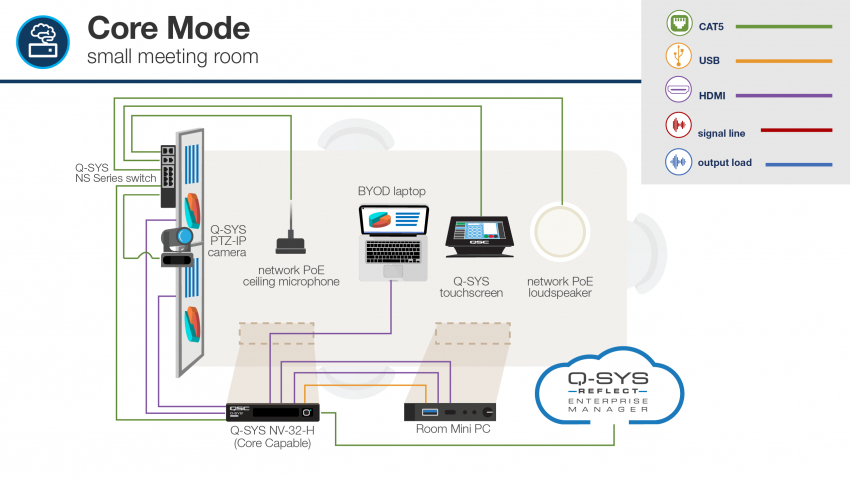

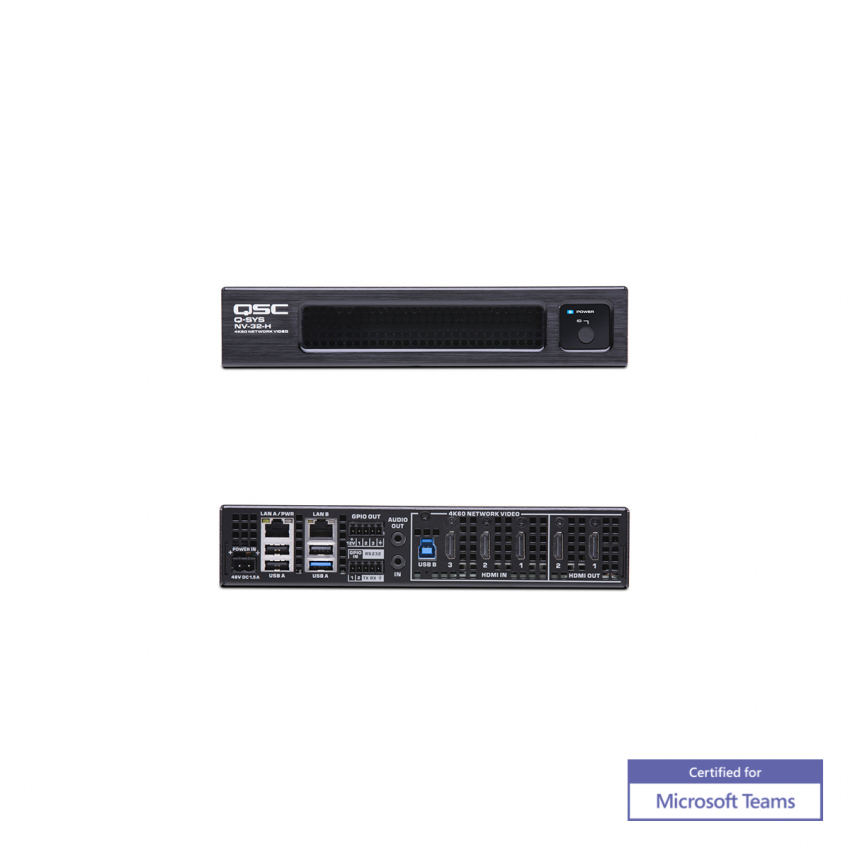

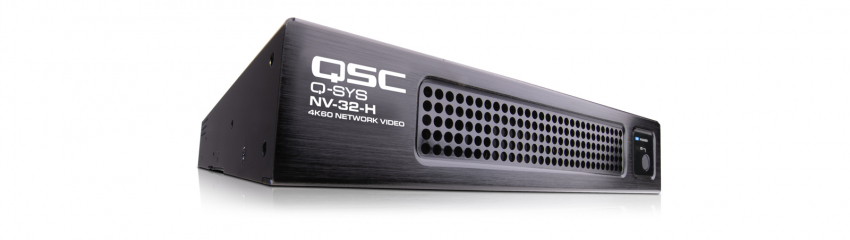

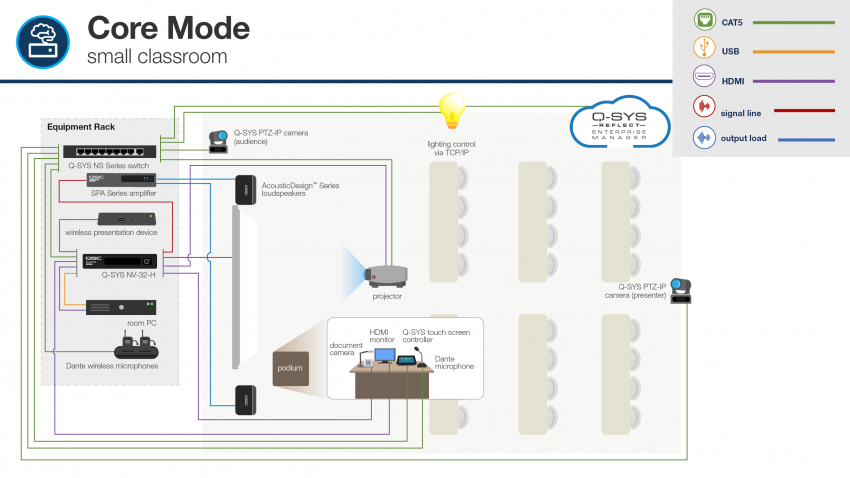

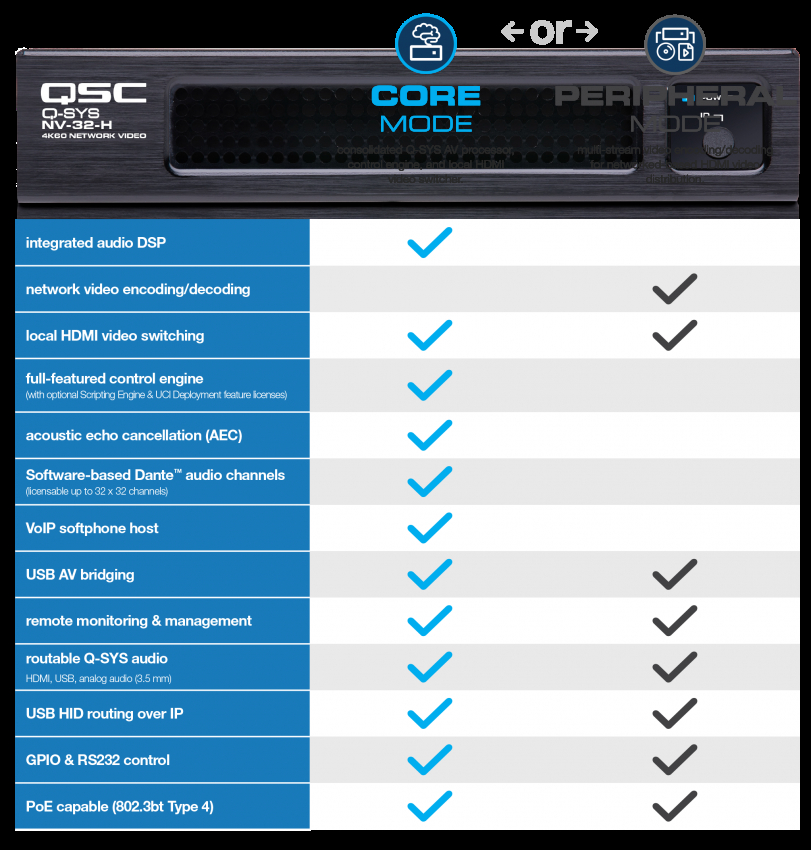

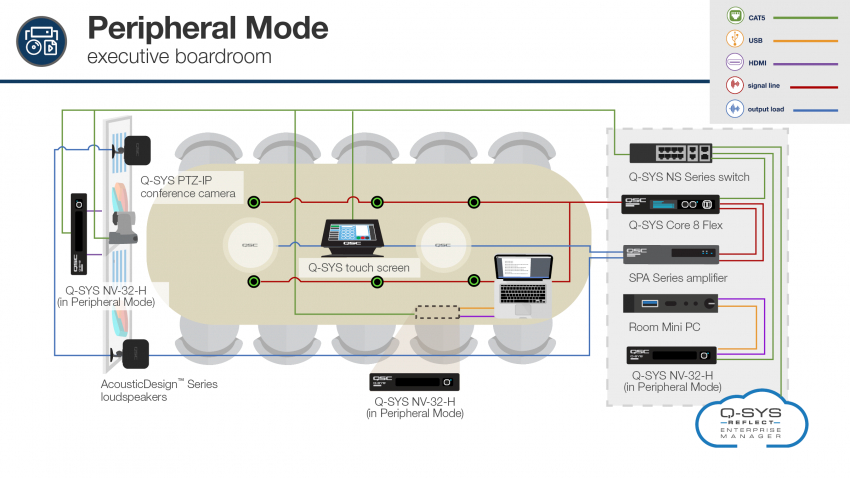

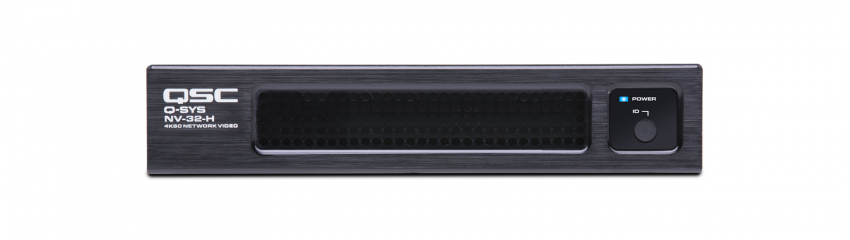

The NV-32-H (Core Capable) is a multipurpose, software-configurable video endpoint native to the Q-SYS Ecosystem, offering two distinct operating modes to choose between, based on the needs of the application. ‘Core Mode’ transforms the device into a fully integrated Q-SYS processor with local HDMI switching capabilities. ‘Peripheral Mode’ allows multi-stream video encoding or decoding for network-based HDMI video distribution. Like all Q-SYS devices, the NV-32-H (Core Capable) offers native integration and control, simplifying setup, configuration and firmware management while eliminating the need for advanced programming knowledge.
True Q-SYS processing and I/O capabilities

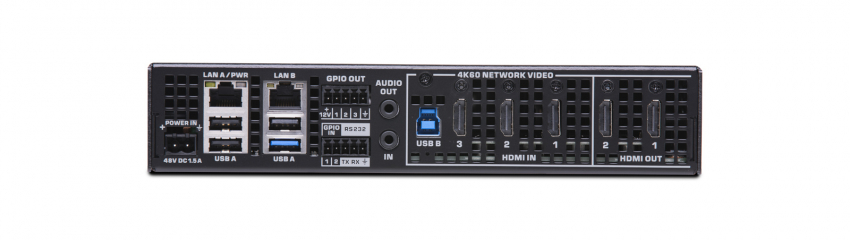

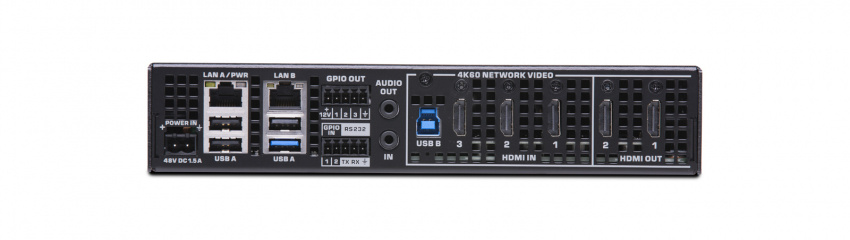

Full-featured featured audio processing engine for the Q-SYS Ecosystem featuring 32 x 32 network audio channels, eight channels of software-based AEC, along with onboard audio I/O via HDMI, USB and 3.5 mm. Optional software feature licenses allow for even greater, customizable functionality (full-featured control engine, UCI engine, Dante audio channels, remote monitoring and more).
Integrated video switching

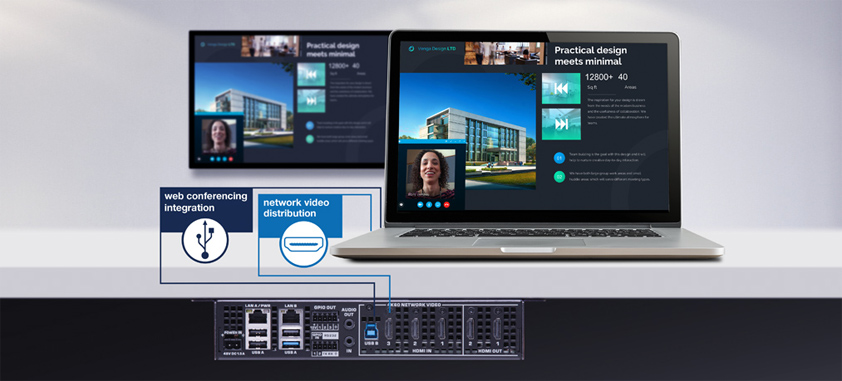

Core Mode enables an on-board 3 x 2 HDMI video switcher, allowing in-room users to easily share presentation or video content from their laptops or other in-room HDMI sources.
