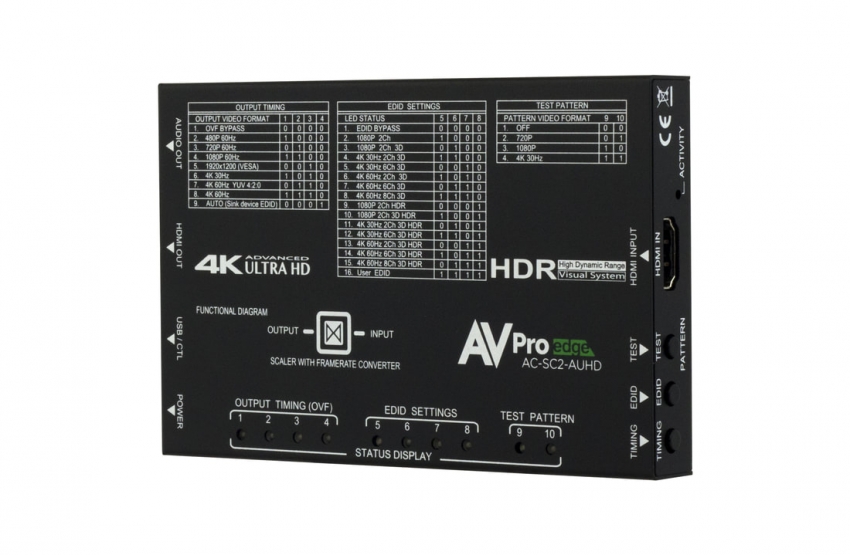

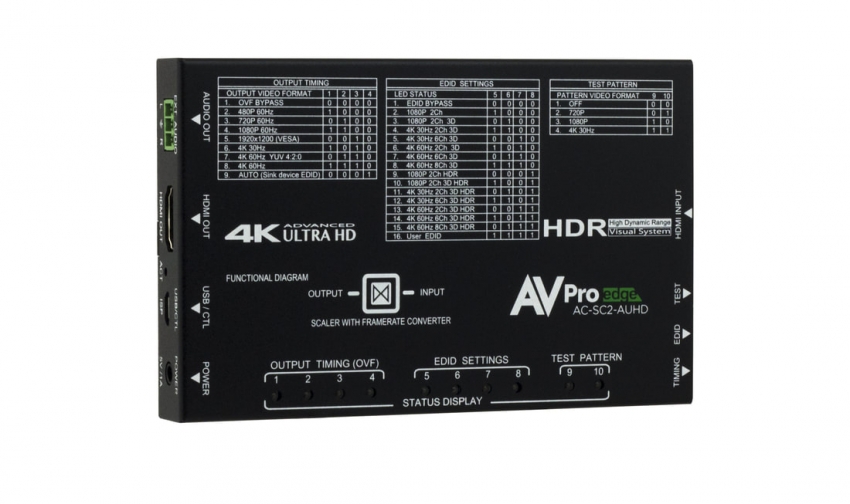

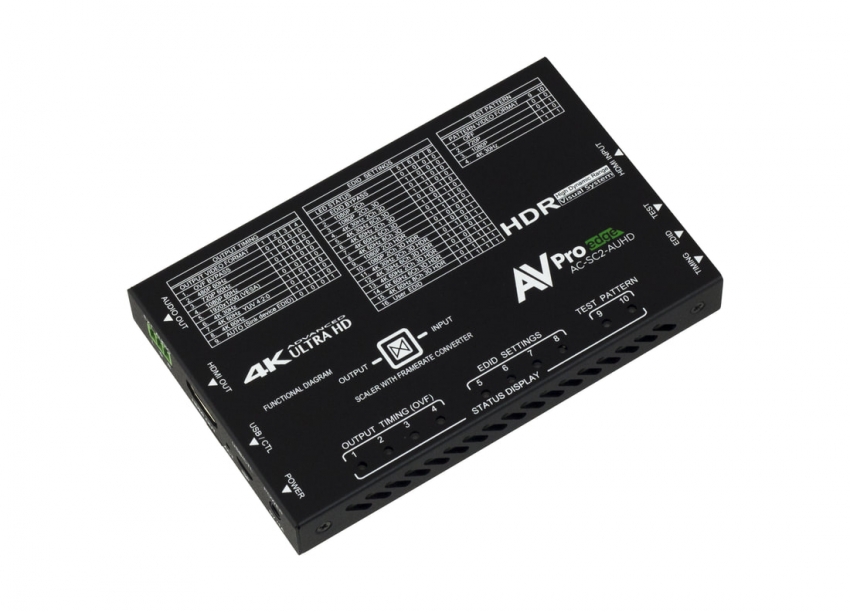

The AVPro Edge's AC-SC2-AUHD is the ideal solution for integrators that are needing to distribute a signal to a variety of displays and keep an optimal picture. Integrators will enjoy it's versatility of not only being able to control up/down scaling but han dling EDID issues (including 4K HDR EDID's) and being able to access audio from the stream. This scaler is ready for future content as well as it's able to distribute 18Gbps signaling. Yet if you have 480, 720, or 1080 displays the AC-SC2-AUHD will make sure it's getting the right picture.
This product works great alongside one of the AVPro Edge's Matrix's allowing yourself to give the customer the best resolution possible.
This product works great alongside one of the AVPro Edge's Matrix's allowing yourself to give the customer the best resolution possible.
Key benefits of using AC-SC2-AUHD:
Full HDR Support: With a plethora of HDR EDID's to choose from, HDR is now able to be activated on capable displays no matter what the infrastructure requires. This allows flexibility in system design and allows you to maximize a budgets by providing HDR content where you want it.
Fixed Output Up/Down Scaling: This is possibly one of the most important features in the mixed system. Most AVR's, matrix switchers, and other peripherals do not have the ability to scale. Typically, 4K systems are limited to the maximum resolution of the cheapest or oldest display. If you took the most expensive 4K matrix, you would still have to "dumb down" the entire system to be compatible. The AC-SC2-AUHD is the solution! Simply place the scaler in before the older display/s and enjoy 4K content on the capable displays while keeping the same content on the other displays. The fixed output allows you to "Set it and forget it". For example, If you have a 720P display, set the AC-SC2-AUHD to 720P and any inbound signal will be scaled up or down to 720.
Interlaced to Progressive Scaling: This advanced technology will help installers overcome problematic 1080i sources by converting interlaced signals to progressive signals. Example, you can convert a 1080i signal to 1080P, 4K 30Hz, 4K 60Hz 4:2:0, or 4K 60Hz 4:4:4 at the users will.
Adaptive Scaling Mode: This EXCLUSIVE AVPro Edge technology was designed specifically to overcome problems with legacy sources, like set-top boxes outputting 720P or 1080i. When these legacy formats are implemented into modern, high bandwidth distribution systems sink devices can exhibit stability issues. The Adaptive Scaling mode will convert all signals less than 1080P to 1080P and will bypass 4K and HDR signals through untouched. This will allow you to comfortably install legacy sources in modern systems.
The Most Advanced EDID Management: There are 16 pre-loaded EDID settings from legacy technology (480) to full 4K and HDR Options. This is the only device that will provide this unique EDID combination. The AC-SC2-AUHD also has custom user EDID for future use, total customization and EDID bypass for using the sink EDID.
L/R Audio De-Embedding: The AC-SC2-AUHD has an audio output which allows audio to be stripped anywhere in a system and re-routed to where it’s needed most. AC-SC2-AUHD units can be combined and multiple streams can be stripped from multiple outputs or sources. (PCM only, this does not downmix)
On Board Troubleshooting: This unit allows you to generate a 720P, 1080P or 4K test pattern to identify external problems (source, repeater, displays, etc...). You can now be sure that your wiring is correct and get to the bottom of problems quickly should they arise, without having to worrying if the source or sink is working properly.
