- 32 studio-grade mic/line preamps with line level capabilities
- Front panel offers network audio level control
- High performance analog-to-digital conversion on terminal block connectors.
- Software selectable pad can be configured for professional (+4 dBu) or consumer (-10 dBV) input levels for each 16 channel input bank.
- Available Q-SYS control plugin – no programming required

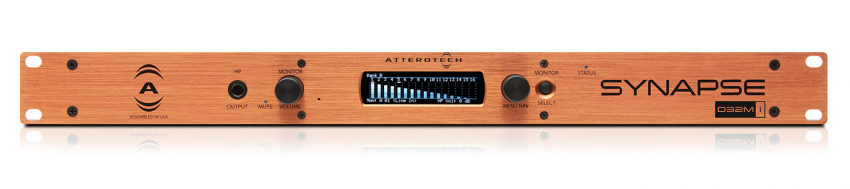

Synapse D32Mi Specifications:
| Mic/Line Inputs | |
| Maximum input level | +24 dBu (pad active - Line mode) |
| Input impedance | 2k Ω (mic) | 10k Ω (line) |
| Input type | 3-pin depluggable terminal block |
| Analog Outputs | |
| Maximum output level | +24 dBu |
| Output impedance | 200 Ω |
| Headphone Output | |
| Connector | 1/4 in TRS jack |
| Controls | Mute / volume encoder |
| Load | 32 Ω minimum |
| Audio Networking | |
| Protocol support | Dante™ with AES67 support |
| Channel count | 32 Dante RX, 2 Dante RX |
| Modes | Switched or Redundant mode |
| Ports | 2 - Gb copper on RJ-45, 2 - Gb SFP |
| General | |
| Dimensions (HWD) | 1.75 x 19 x 12.5 in (44.5 x 482.6 x 5080 mm) |
| Weight | 6 lb (2.72 kg) |
