- High power 12” + 1.4’’ coaxial neodymium transducer
- Two wedge operating modes (stage and nearfield monitoring)
- Integral pole mount for 35 mm diameter poles
- Low profile design for cleaner stage lines
- Ergonomically designed handles for easy manual handling
- External dimensions optimised for truck packing
- Hard-wearing polyurea finish
- Type 80 rear mounting plate for wall/ceiling fixing
- Frequency response: 60 Hz - 18 kHz ±3 dB
- Efficiency1: 100 dB 1W/1m
- Crossover point: 1.2 kHz (passive)
- Nominal impedance: 1 x 8 Ω passive, 1 x 8 Ω (LF) and 1 x 16 Ω (HF) active
- Power handling2: 500 W AES
- Maximum output3: 126 dB cont, 132 dB peak
- Driver configuration: Coaxial 1 x 12” - 1 x 1.4” neodymium
- Dispersion: 80°H x 80°V

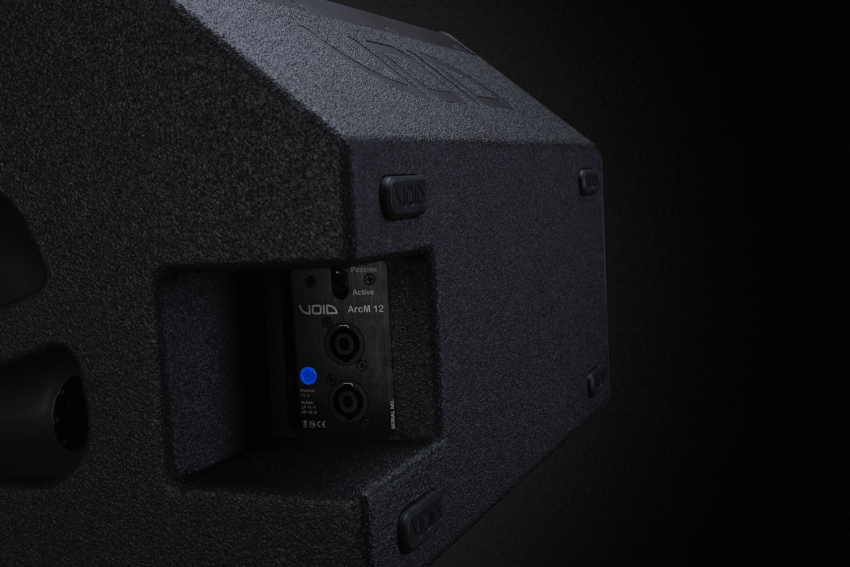

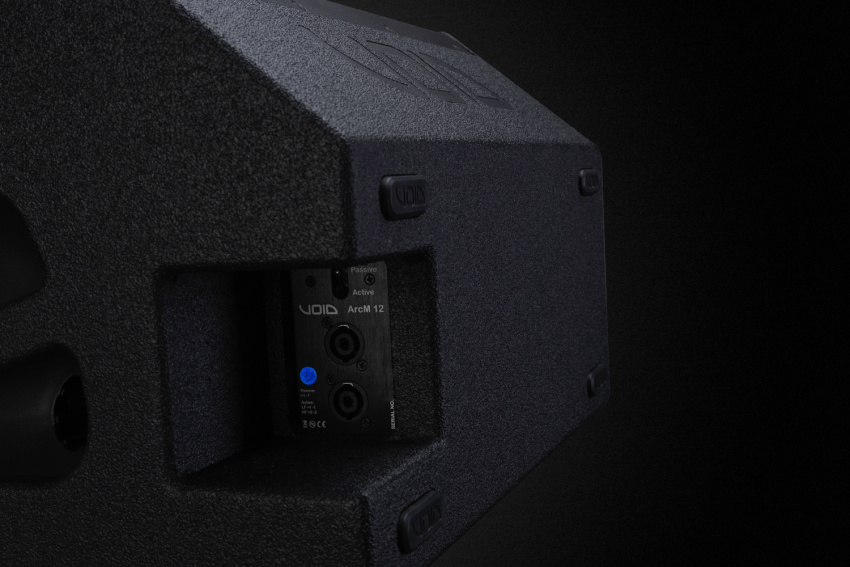

- Connectors: 2 x 4-pole speakON™ NL4
- Height: 330 mm (13”)
- Width: 550 mm (21.7”)
- Depth: 463 mm (18.2”)
- Weight: 19 kg (41.9 lbs)
- Mounting: Integral top hat, type 80 mounting bracket
- Finish: Textured polyurea
