Quick and Easy Rigging

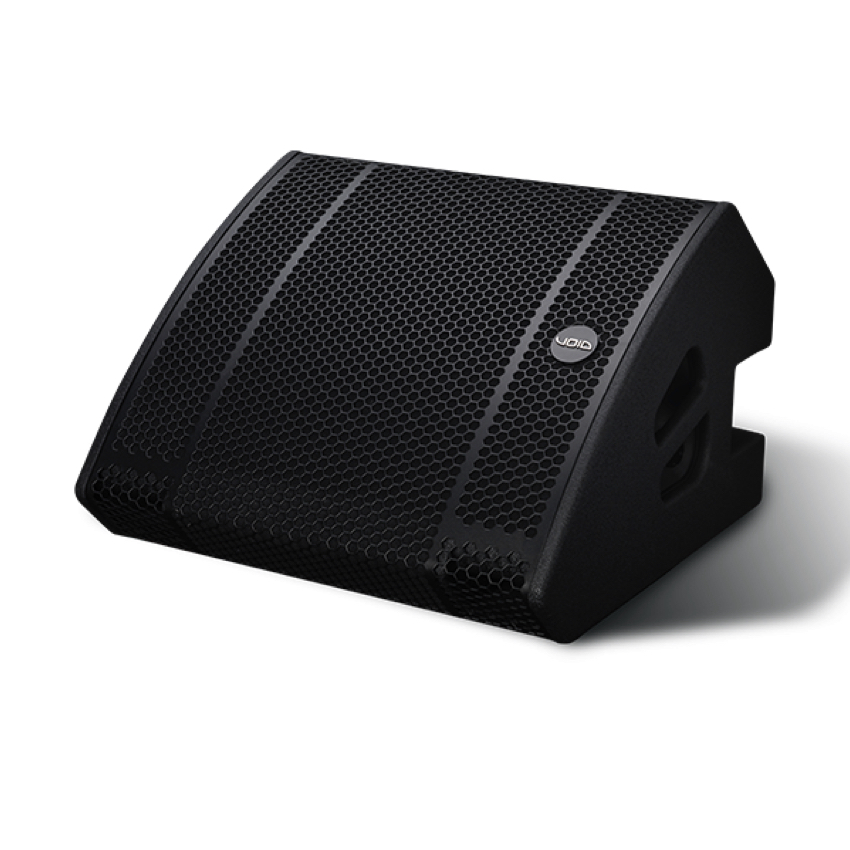

The ArcM 15 is a versatile piece of equipment which utilises ergonomic designs, without sacrifice to the cosmetic shape. To allow for integration with existing infrastructure of rental partners and installers the ArcM 15 is unpowered.
- High power 15” + 1.4’’ coaxial neodymium transducer
- Two wedge operating modes (stage and nearfield monitoring)
- Integral pole mount for 35 mm diameter poles
- Low profile design for cleaner stage lines
- Ergonomically designed handles for easy manual handling
- External dimensions optimised for truck packing
- Hard-wearing polyurea finish
- Type 80 rear mounting plate for wall/ceiling fixing
- Frequency response: 50 Hz - 18 kHz ±3 dB
- Efficiency1: 100 dB 1W/1m
- Crossover point: 1.2 kHz (passive)
- Nominal impedance: 1 x 8 Ω passive, 1 x 8 Ω (LF) and 1 x 16 Ω (HF) active
- Power handling2: 500 W AES
- Maximum output3: 126 dB cont, 132 dB peak
- Driver configuration: Coaxial 1 x 15” - 1 x 1.4” neodymium
- Dispersion: 80°H x 80°V
- Connectors: 2 x 4-pole speakON™ NL4
- Height: 371 mm (14.6”)
- Width: 550 mm (21.7”)
- Depth: 530 mm (20.9”)
- Weight: 22.5 kg (49.6 lbs)
- Rigging: Integral top hat, type 80 mounting bracket
- Finish: Textured polyurea
