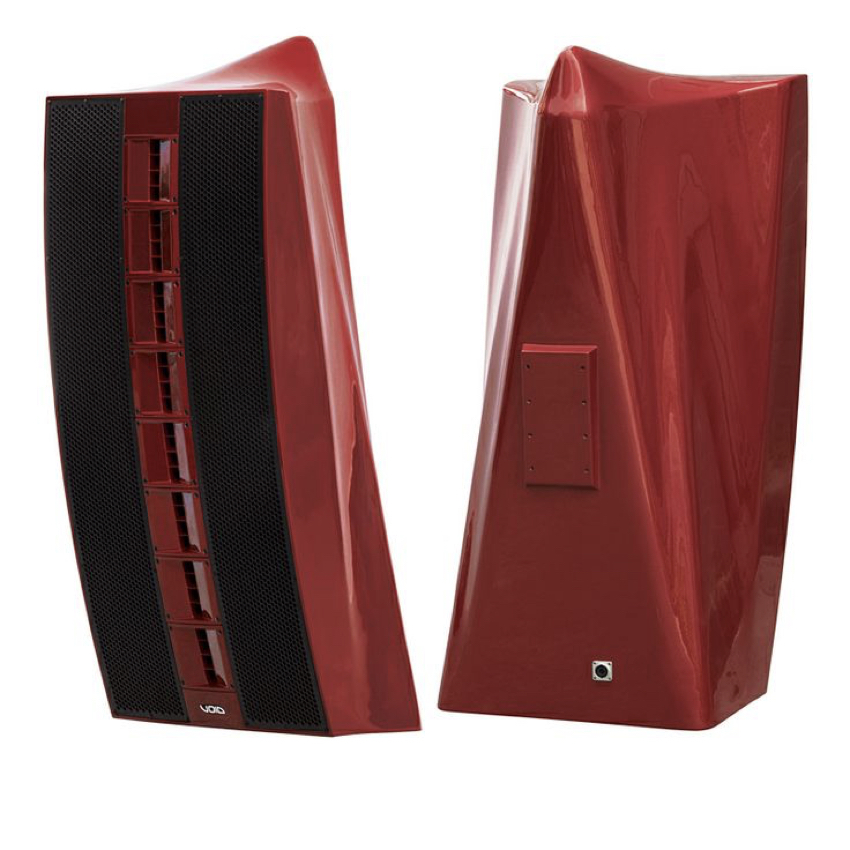

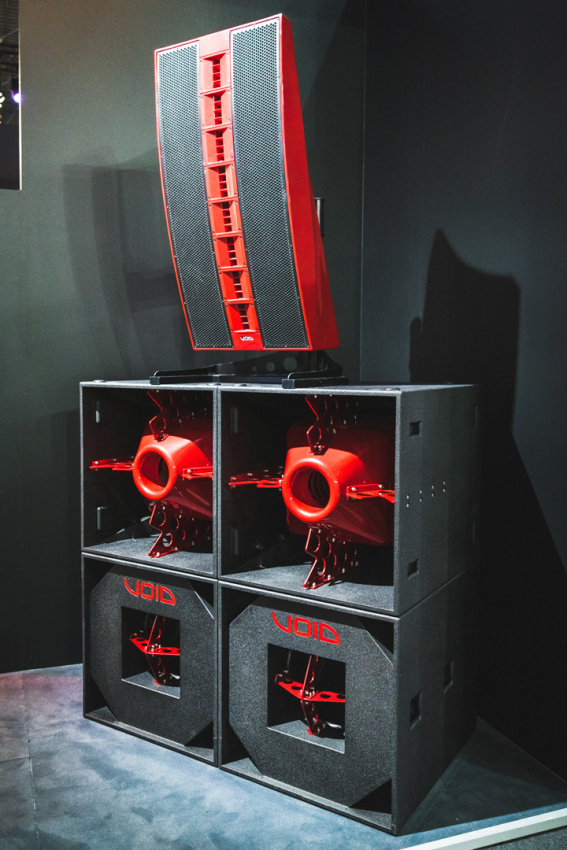

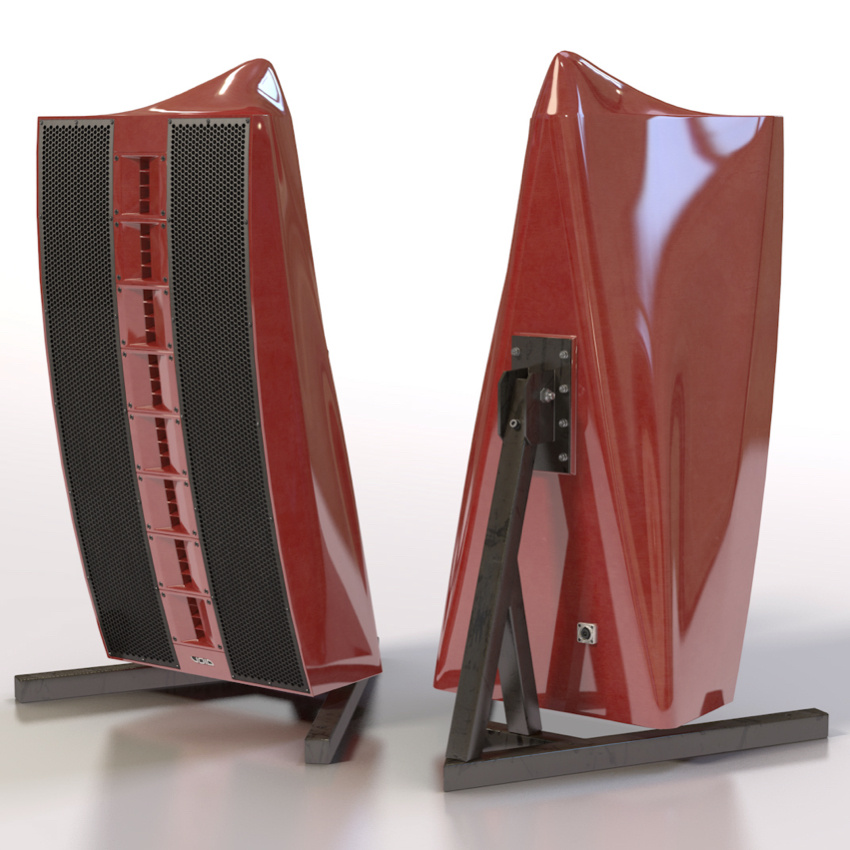

Dispersion, phase, coherency and timing are controlled and unified, providing the same audio quality in every corner. Whether stacked on a low frequency enclosure or flown independently the Nexus 6 is perfect for large nightclubs, festivals and bars.
- Visually striking appearance for style-led environments
- Virtual Arc technology forms common acoustic centre
- Unified dispersion, phase and timing
- Twenty discrete proprietary drive units
- Stack mounted or proprietary suspension system
- Fibreglass composite construction
- Standard red finish, optional custom colours
- Smooth cellulose finish
- Frequency Response: 78 Hz - 21 kHz ±3 dB
- Efficiency1: LF: 105 dB 1W/1m, HF: 110 dB 1W/1m
- Crossover Points: 1.6 kHz active
- Nominal Impedance: LF: 2 x 5.3 Ω, HF: 2 x 4 Ω
- Power Handling2: LF: 2 x 1350 W AES, HF: 2 x 320 W AES
- Maximum Output3: 137 dB cont, 140 dB peak
- Driver Configuration: 12 x 6.5” LF, 8 x 1” HF compression driver
- Dispersion: 110°H x 50°V
- Connectors: 1 x 8-pole speakON™ NL8
- Weight: 75.5 kg (166.5 lbs)
- Enclosure: Fibreglass composite
- Rigging: Stack mounted or proprietary suspension system
- Finish: Smooth cellulose
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
