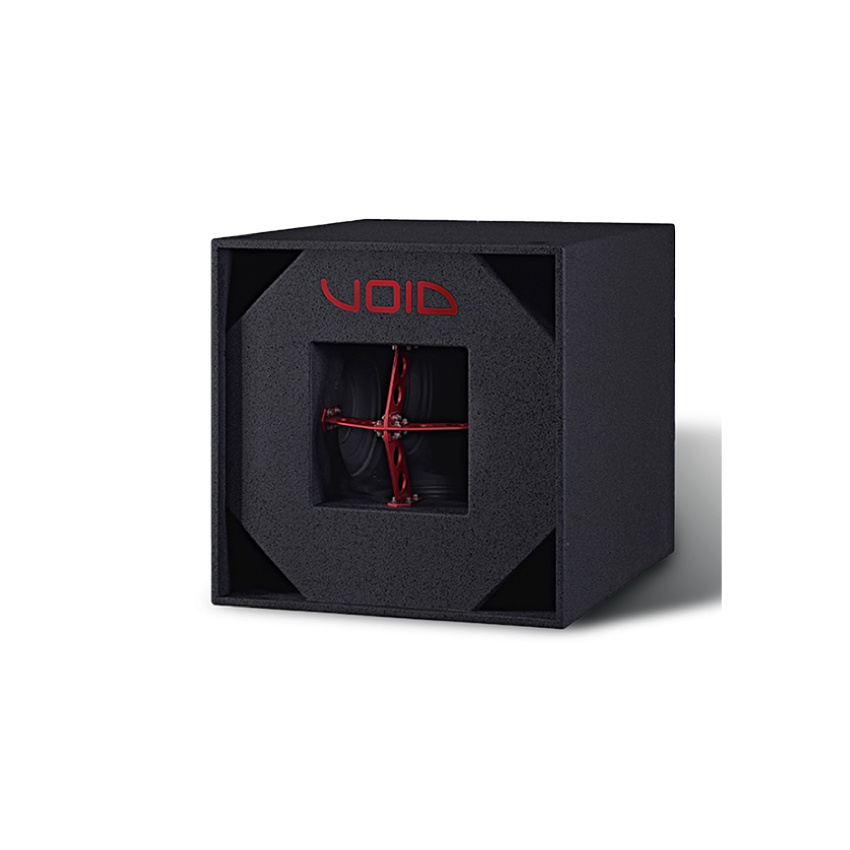

The Nexus X provides the lower spectrum of the Nexus LF system, capable of extreme excursion with minimal distortion. Material technology advancements minimise resonance while multiple transducer work in unison, providing high levels of efficiency.
- 8000 W
- Eight 12” transducers
- Very low distortion
- Highly efficient
- Compact
- Minimal resonance
- Frequency Response: 36 Hz - 100 Hz -3dB
- Efficiency1: 108 dB 1W/1m• Crossover Points 70 Hz
- Nominal Impedance: 2 x 4 Ω
- Power Handling2: 2 x 4000 W AES
- Maximum Output3: 146 dB cont 152 dB peak
- Driver Configuration: 8 x 12” neodymium
- Dispersion: Array dependant
- Connectors: 2 x 4-pole speakON™ NL4
- Weight: 137 kg (302 lbs)
- Enclosure: 18 mm birch plywood
- Finish: Textured ‘TourCoat’ polyurea
- Grille: Perforated steel
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
