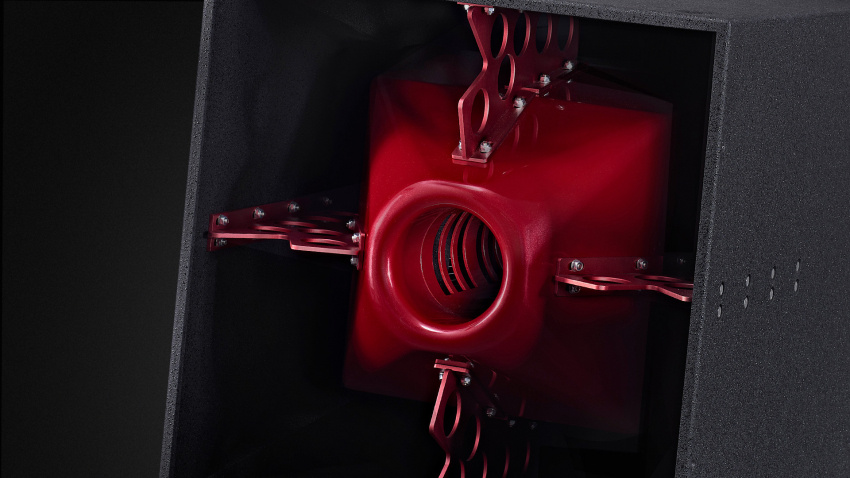

The Improved configuration results in an enclosure with unmatched output and definition, alongside elimination of any colouration from turbulent or mechanical port noise. The Nexus Q is well-suited to high-impact nightclubs, concerts and festivals.
- Four high power 12” transducers

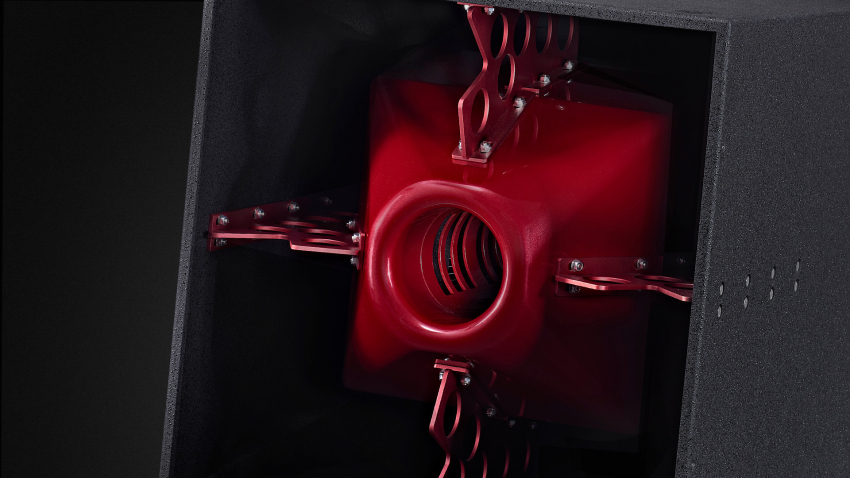

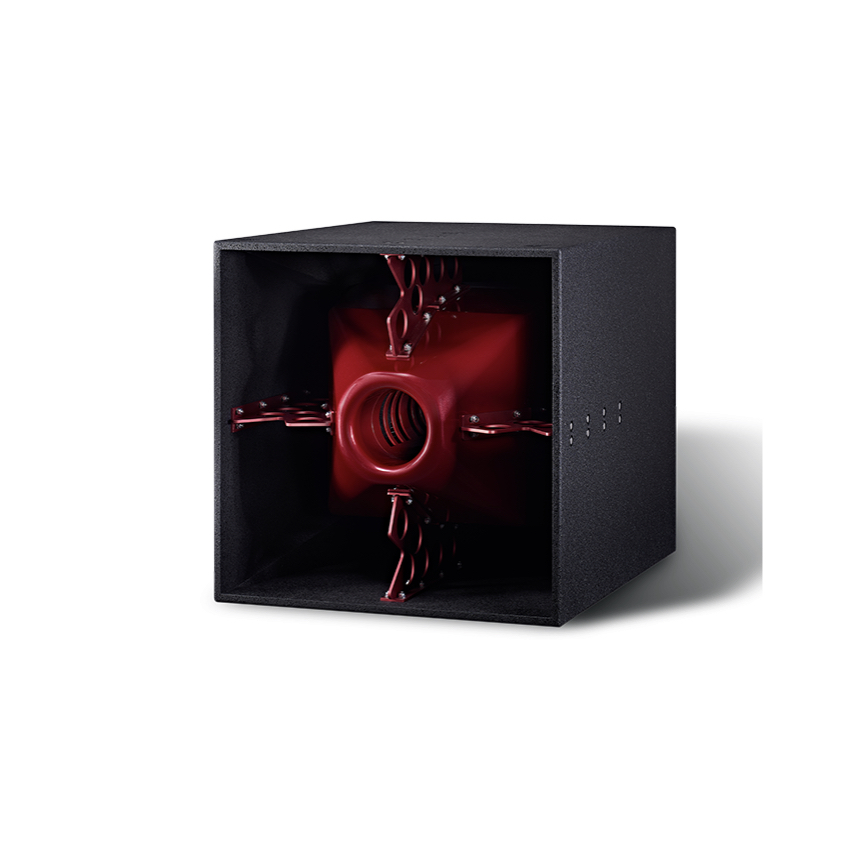

- Front loaded horn
- High efficiency
- Newly developed ‘pressure gradient’ arrangement
- Frequency Response: 60 Hz - 150 Hz ±3dB
- Efficiency1: 110 dB 1W/1m
- Crossover Points: 70 Hz
- Nominal Impedance: 2 x4 Ω
- Power Handling2: 2 x 2000 W AES
- Maximum Output3: 145 dB cont, 151 dB peak
- Driver Configuration: 4 x 12”
- Dispersion: Array dependant
- Connectors: 2 x 4-pole SpeakON™
- Weight: 130 kg (286.6 lbs)
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
